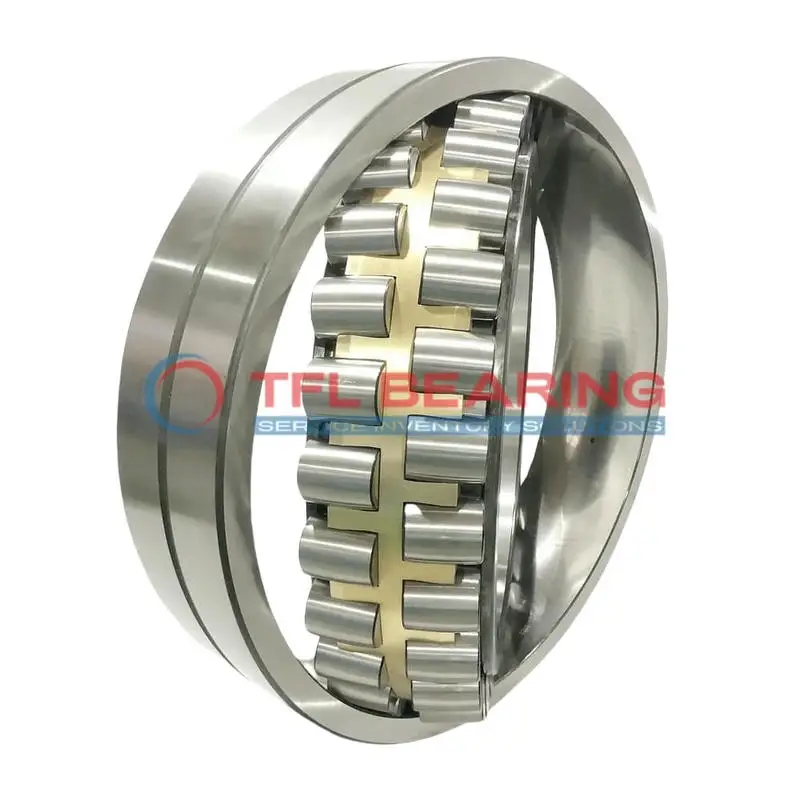

241/600 ECAK30/W33 Double Row Spherical Roller Bearing

241/600 ECAK30/W33 Double Row Spherical Roller Bearing

The 241/600 ECAK30/W33 is a double-row spherical roller bearing with a large 600mm bore and 980mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 3039867 lbf and operates smoothly at speeds up to 300 RPM.

Its brass cage and open design allow for easy lubrication, while the tapered bore ensures a secure fit. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 1085kg, it’s a robust solution for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/600 ECAK30/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 980 x 375 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance +0.05mm to 0
  • Outer Dia 980 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 375 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 702 mm
  • Shoulder/Recess Dia Of Outer Ring 845 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3039867 lbf
  • Static Radial Load 5305491 lbf
  • Max Speed 300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1085 kg
  • Price （US$） US$20,048.99

Features

Performance Features of 241/600 ECAK30/W33 Bearing

241/600 ECAK30/W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 3,039,867 lbf, ensuring dependable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 300 rpm, it balances strength and operational efficiency.

241/600 ECAK30/W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its tapered bore design simplifies installation, saving time and effort.

The lubrication groove and hole ensure consistent oil distribution, reducing maintenance needs.
This design extends the bearing’s service life, making it a cost-effective choice.

241/600 ECAK30/W33 Bearing meets RoHS and REACH standards, ensuring environmental compliance.
Its large size and weight (1,085 kg) make it ideal for industrial machinery requiring high load capacity.

Application

Industrial Uses of 241/600 ECAK30/W33 Bearing
The 241/600 ECAK30/W33 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial and axial loads.
Its brass cage and chrome steel rollers ensure durability even in harsh operating conditions.

What Makes 241/600 ECAK30/W33 Bearing a Preferred Choice?
In wind turbines, 241/600 ECAK30/W33 Bearing provides reliable performance under fluctuating loads and speeds.
The tapered bore design allows for secure fitting, reducing slippage during operation.

Built for Heavy-Duty Use: 241/600 ECAK30/W33 Bearing
This bearing excels in paper mill machinery, where its spherical rollers compensate for shaft misalignment.
The lubrication groove ensures smooth operation, even in high-temperature environments.

Automotive vs Aerospace: Applications of 241/600 ECAK30/W33 Bearing
While too large for most automotive uses, 241/600 ECAK30/W33 Bearing is ideal for aerospace ground support equipment.
Its high static load capacity makes it suitable for heavy lifting applications like aircraft tow tractors.

Perfect Fit for Automation: 241/600 ECAK30/W33 Bearing
In steel rolling mills, 241/600 ECAK30/W33 Bearing withstands extreme pressures while maintaining precision.
The metric sizing ensures compatibility with European industrial standards.
