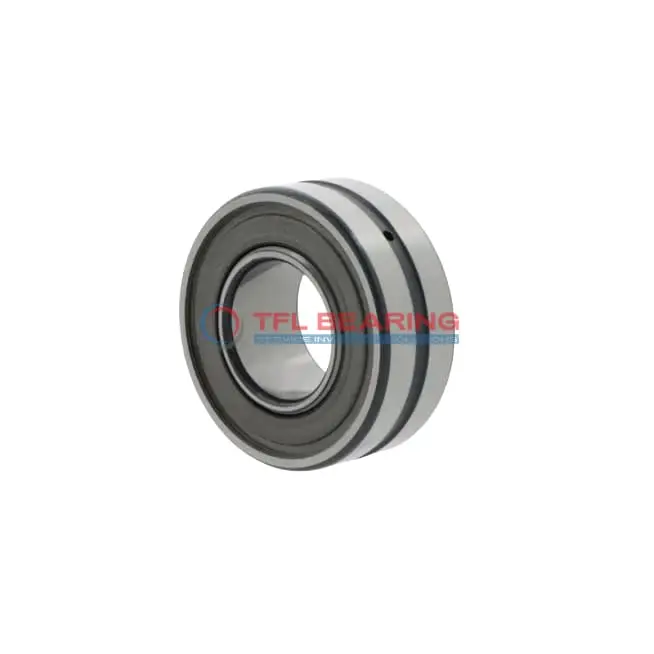

241/600-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

241/600-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

The 241/600-2CS5K30/C3HGEA8 is a large double-row spherical roller bearing with a 600mm bore and 980mm outer diameter, built from tough chrome steel. It handles combined loads up to 3047285 lbf and operates smoothly at speeds up to 40 RPM.

Its double-seal design keeps contaminants out, while the tapered bore ensures a secure fit. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

With a C3 radial clearance, it offers flexibility under heavy loads. Ideal for heavy machinery like crushers or large gearboxes where durability is key.

Weighing 1095kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/600-2CS5K30/C3HGEA8
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 980 x 375 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance +0.05mm to 0
  • Outer Dia 980 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 375 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 675 mm
  • Shoulder/Recess Dia Of Outer Ring 878 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 3047285 lbf
  • Static Radial Load 5395415 lbf
  • Max Speed 40 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1095 kg

Features

Performance Features of 241/600-2CS5K30/C3HGEA8 Bearing

241/600-2CS5K30/C3HGEA8 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 3,047,285 lbf, making it suitable for heavy-duty industrial applications.

The double seal design of 241/600-2CS5K30/C3HGEA8 Bearing protects against contaminants, ensuring reliable operation.
With a maximum speed of 40 rpm, it maintains stability even under substantial stress.

241/600-2CS5K30/C3HGEA8 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, reducing downtime during maintenance.

The steel cage in 241/600-2CS5K30/C3HGEA8 Bearing ensures proper roller alignment, enhancing longevity.
This bearing is ideal for applications requiring durability and precision under heavy loads.

Application

Industrial Uses of 241/600-2CS5K30/C3HGEA8 Bearing
241/600-2CS5K30/C3HGEA8 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The tapered bore ensures a secure fit, reducing slippage during high-stress operations.

In wind turbines, 241/600-2CS5K30/C3HGEA8 Bearing supports the main shaft, thanks to its robust chrome steel construction and C3 radial clearance. The double seals protect against contaminants, extending service life in harsh outdoor conditions.

For mining equipment, 241/600-2CS5K30/C3HGEA8 Bearing’s high dynamic radial load capacity makes it ideal for conveyor systems and excavators. Its lubrication groove design simplifies maintenance, even in remote locations.

Automotive vs Aerospace: Applications of 241/600-2CS5K30/C3HGEA8 Bearing
In large commercial vehicles, 241/600-2CS5K30/C3HGEA8 Bearing is used in axle systems, where its durability withstands constant heavy loads. The metric sizing ensures compatibility with global manufacturing standards.

Aerospace applications benefit from 241/600-2CS5K30/C3HGEA8 Bearing’s temperature resistance, particularly in ground support equipment. Its steel cage provides stability during slow-speed, high-precision operations.

Built for Heavy-Duty Use: 241/600-2CS5K30/C3HGEA8 Bearing
241/600-2CS5K30/C3HGEA8 Bearing excels in steel mills, where its spherical rollers accommodate misalignment from thermal expansion. The lubrication holes ensure consistent performance even under extreme heat.

For paper manufacturing, 241/600-2CS5K30/C3HGEA8 Bearing’s static radial load capacity supports massive rollers. The chrome steel material resists corrosion from moisture and chemical exposure.
