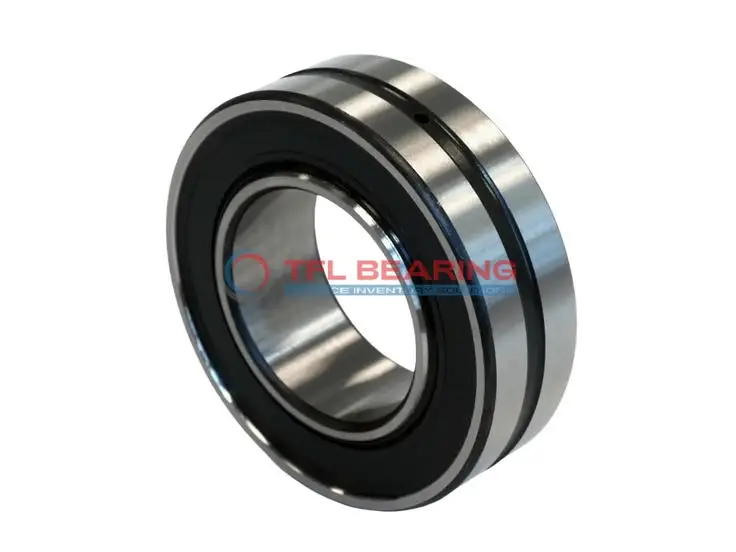

241/1120-2CS6K30/C3HGEA8 Double Row Spherical Roller Bearing

241/1120-2CS6K30/C3HGEA8 Double Row Spherical Roller Bearing

The 241/1120-2CS6K30/C3HGEA8 is a large double-row spherical roller bearing with a 1120mm bore and 1750mm outer diameter, built from tough chrome steel. It handles combined loads up to 7647101 lbf and operates smoothly at speeds up to 20 RPM.

Its double-seal design keeps contaminants out while the tapered bore ensures a secure fit. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 5535kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/1120-2CS6K30/C3HGEA8
  • Brand TFL
  • Interchangeable SKF
  • Size 1120 x 1750 x 630 mm
  • Bore Dia 1120 mm
  • Bore Dia Tolerance +0.125mm to 0
  • Outer Dia 1750 mm
  • Outer Dia Tolerance -0.2mm to 0
  • Width 630 mm
  • Width Tolerance -1.25mm to 0
  • Shoulder Dia Of Inner Ring 1238 mm
  • Shoulder/Recess Dia Of Outer Ring 1615 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.15 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 7647101 lbf
  • Static Radial Load 15287008 lbf
  • Max Speed 20 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 5535 kg

Features

Performance Features of 241/1120-2CS6K30/C3HGEA8 Bearing

241/1120-2CS6K30/C3HGEA8 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 7,647,101 lbf, ensuring reliable performance in heavy-duty applications.

The double seal design protects 241/1120-2CS6K30/C3HGEA8 Bearing from contaminants, enhancing its durability.
With a maximum speed of 20 rpm, it is suited for slow, high-load operations.

241/1120-2CS6K30/C3HGEA8 Bearing operates in temperatures from -30° to 200°C, making it versatile for various environments.
The tapered bore design ensures secure fitting and easy installation.

The lubrication groove and holes in 241/1120-2CS6K30/C3HGEA8 Bearing facilitate efficient maintenance.
Its C3 radial clearance allows for thermal expansion during operation.

The steel cage in 241/1120-2CS6K30/C3HGEA8 Bearing maintains roller alignment, reducing wear.
This design ensures long service life even under extreme conditions.

Application

Industrial Uses of 241/1120-2CS6K30/C3HGEA8 Bearing
241/1120-2CS6K30/C3HGEA8 Bearing is commonly used in heavy machinery like mining equipment and large-scale conveyor systems, where its double-row design handles significant radial and axial loads. The tapered bore ensures a secure fit, reducing slippage during operation.

In wind turbines, 241/1120-2CS6K30/C3HGEA8 Bearing supports the main shaft, providing stability under varying wind conditions. Its high dynamic radial load capacity makes it suitable for long-term use in renewable energy applications.

For steel mills, 241/1120-2CS6K30/C3HGEA8 Bearing’s chrome steel construction withstands extreme temperatures and heavy loads. The double seals help keep contaminants out, extending the bearing’s lifespan in harsh environments.

Where Is 241/1120-2CS6K30/C3HGEA8 Bearing Used?
241/1120-2CS6K30/C3HGEA8 Bearing is ideal for paper manufacturing machines, where its spherical rollers accommodate misalignment and reduce vibration. The C3 radial clearance allows for thermal expansion during high-speed operations.

In marine applications, 241/1120-2CS6K30/C3HGEA8 Bearing’s corrosion-resistant materials and robust design ensure reliability in ship propulsion systems. The lubrication groove simplifies maintenance, even in hard-to-reach areas.

Built for Heavy-Duty Use: 241/1120-2CS6K30/C3HGEA8 Bearing
241/1120-2CS6K30/C3HGEA8 Bearing excels in construction equipment like cranes, where its high static radial load capacity supports heavy lifting. The steel cage enhances durability under constant stress.

For railway applications, 241/1120-2CS6K30/C3HGEA8 Bearing’s combined load handling makes it suitable for bogies and axles. Its temperature range ensures performance in both cold and hot climates.

Automotive vs Aerospace: Applications of 241/1120-2CS6K30/C3HGEA8 Bearing
In automotive testing rigs, 241/1120-2CS6K30/C3HGEA8 Bearing’s precision helps simulate real-world conditions. The metric sizing aligns with European engineering standards.

For aerospace ground support equipment, 241/1120-2CS6K30/C3HGEA8 Bearing’s reliability ensures smooth operation during aircraft maintenance. Its weight capacity makes it a practical choice for heavy machinery.
