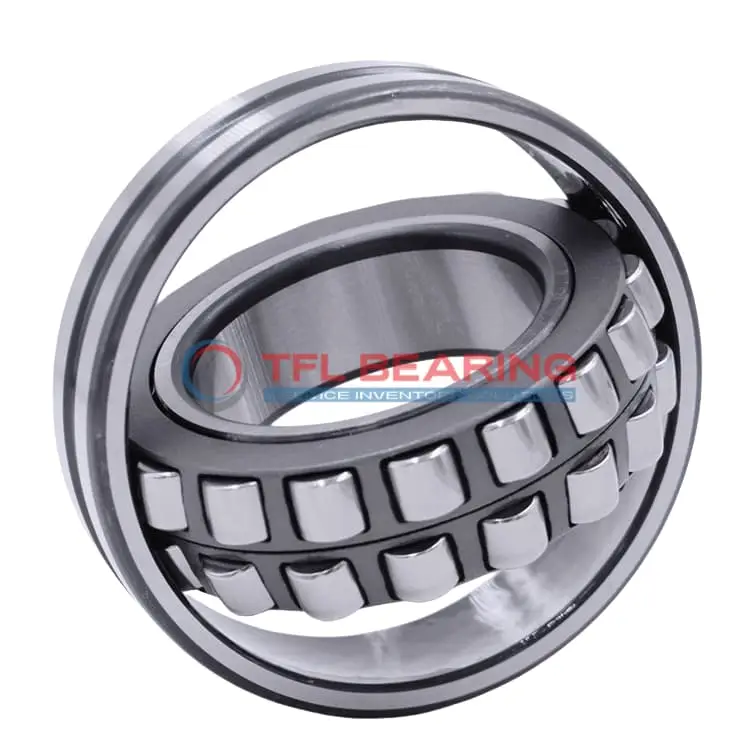

24080 ECCJ/C083W509 Double Row Spherical Roller Bearing

24080 ECCJ/C083W509 Double Row Spherical Roller Bearing

The 24080 ECCJ/C083W509 is a double-row spherical roller bearing with a 400mm bore and 600mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1,013,214 lbf and operates smoothly at speeds up to 900 RPM.

Its spherical roller design compensates for misalignment, while the steel cage ensures durability under heavy loads. The open construction allows for easy lubrication, with grooves and holes designed for efficient maintenance.

This bearing suits high-load applications like industrial gearboxes or mining equipment, where reliability is key. It works in temperatures from -30°C to 200°C, making it versatile for harsh environments.

Weighing 210kg, it’s a robust choice for heavy machinery. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24080 ECCJ/C083W509
  • Brand TFL
  • Interchangeable SKF
  • Size 400 x 600 x 200 mm
  • Bore Dia 400 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 200 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 442 mm
  • Shoulder/Recess Dia Of Outer Ring 527 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 1013214 lbf
  • Static Radial Load 1798472 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 210 kg
  • Price （US$） US$5,527.13

Features

How Is 24080 ECCJ/C083W509 Bearing Engineered for Reliability?

24080 ECCJ/C083W509 Bearing features a double-row spherical roller design, ideal for handling combined loads with high precision.
Its chrome steel construction ensures durability, even under extreme conditions.

The bearing’s dynamic radial load capacity reaches 1,013,214 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 900 rpm, it maintains stable performance in demanding environments.

24080 ECCJ/C083W509 Bearing operates efficiently within a temperature range of -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, ensuring smooth operation.

The steel cage keeps rollers aligned, reducing wear and extending service life.
Lubrication is required to maintain optimal performance and minimise friction.

Application

Essential Roles of 24080 ECCJ/C083W509 Bearing
24080 ECCJ/C083W509 Bearing is widely used in heavy industrial machinery, such as mining equipment and large conveyor systems, where its double-row design handles combined loads efficiently. The spherical roller construction ensures reliable performance even in misaligned conditions.

In wind turbine applications, 24080 ECCJ/C083W509 Bearing supports the main shaft, providing stability under dynamic radial loads. Its high load capacity and temperature resistance make it suitable for harsh outdoor environments.

For steel production plants, 24080 ECCJ/C083W509 Bearing is often found in rolling mills, where its robust construction withstands extreme pressures. The open design allows for easy lubrication, extending service life in high-demand settings.

Automotive vs Aerospace: Applications of 24080 ECCJ/C083W509 Bearing
In automotive manufacturing, 24080 ECCJ/C083W509 Bearing is used in large presses and stamping machines, ensuring precision under heavy loads. Its cylindrical bore simplifies installation in high-volume production lines.

Aerospace applications benefit from 24080 ECCJ/C083W509 Bearing’s ability to handle combined loads in landing gear systems. The chrome steel material provides durability while meeting strict industry standards for safety and performance.

Built for Heavy-Duty Use: 24080 ECCJ/C083W509 Bearing
24080 ECCJ/C083W509 Bearing excels in construction equipment like cranes and excavators, where its high static radial load capacity is crucial. The C3 radial clearance accommodates thermal expansion during prolonged use.

In marine propulsion systems, 24080 ECCJ/C083W509 Bearing ensures smooth operation of propeller shafts. Its corrosion-resistant materials and lubrication grooves maintain performance in saltwater environments.
