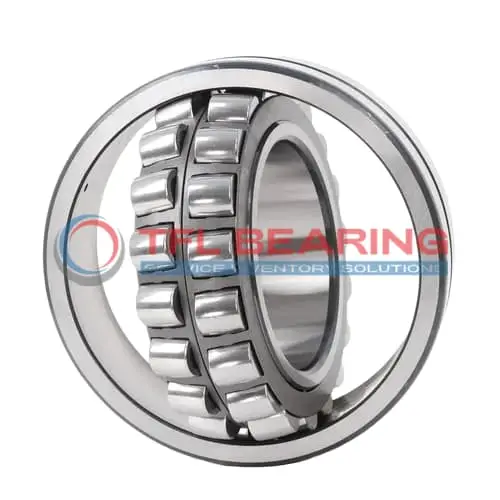

24060 CCK 30 W33 Double Row Spherical Roller Bearing

24060 CCK 30 W33 Double Row Spherical Roller Bearing

The 24060 CCK 30 W33 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, built from tough chrome steel. It handles combined loads up to 614852 lbf and runs smoothly at speeds up to 1200 RPM.

Its tapered bore design ensures a secure fit, while the steel cage and open construction allow for easy lubrication. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 97kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The lubrication groove and holes simplify maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24060 CCK 30 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 160 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance +0.052mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 160 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 344 mm
  • Shoulder/Recess Dia Of Outer Ring 400 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 614852 lbf
  • Static Radial Load 101164 lbf
  • Max Speed 1200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 97 kg
  • Price （US$） US$2,983.50

Features

Performance Features of 24060 CCK 30 W33 Bearing

24060 CCK 30 W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 614852 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for misalignment compensation, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

24060 CCK 30 W33 Bearing operates efficiently within a temperature range of -30° to 200°C.
Its open design and required lubrication ensure smooth performance in various industrial environments.

With a maximum speed of 1200 rpm, this bearing balances high load capacity and operational efficiency.
The tapered bore design simplifies installation, making it a practical choice for many applications.

Application

Industrial Uses of 24060 CCK 30 W33 Bearing
24060 CCK 30 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The tapered bore ensures a secure fit, reducing slippage during high-stress operations.

Where Is 24060 CCK 30 W33 Bearing Used?
In mining equipment, 24060 CCK 30 W33 Bearing provides reliable performance under extreme conditions, thanks to its chrome steel construction. Its lubrication groove design also simplifies maintenance in dusty environments.

Built for Heavy-Duty Use: 24060 CCK 30 W33 Bearing
24060 CCK 30 W33 Bearing excels in paper mill machinery, where its spherical rollers accommodate misalignment and heavy radial loads. The steel cage adds durability, making it a long-lasting choice for continuous operation.

Automotive vs Aerospace: Applications of 24060 CCK 30 W33 Bearing
In large trucks, 24060 CCK 30 W33 Bearing supports axles and transmissions, handling both radial and thrust loads. While not typically used in aerospace, its robust design suits other high-load industrial applications.

Perfect Fit for Automation: 24060 CCK 30 W33 Bearing
24060 CCK 30 W33 Bearing is ideal for robotic assembly lines, where its high dynamic load capacity ensures smooth movement. The open seal type allows for easy lubrication, keeping performance consistent over time.
