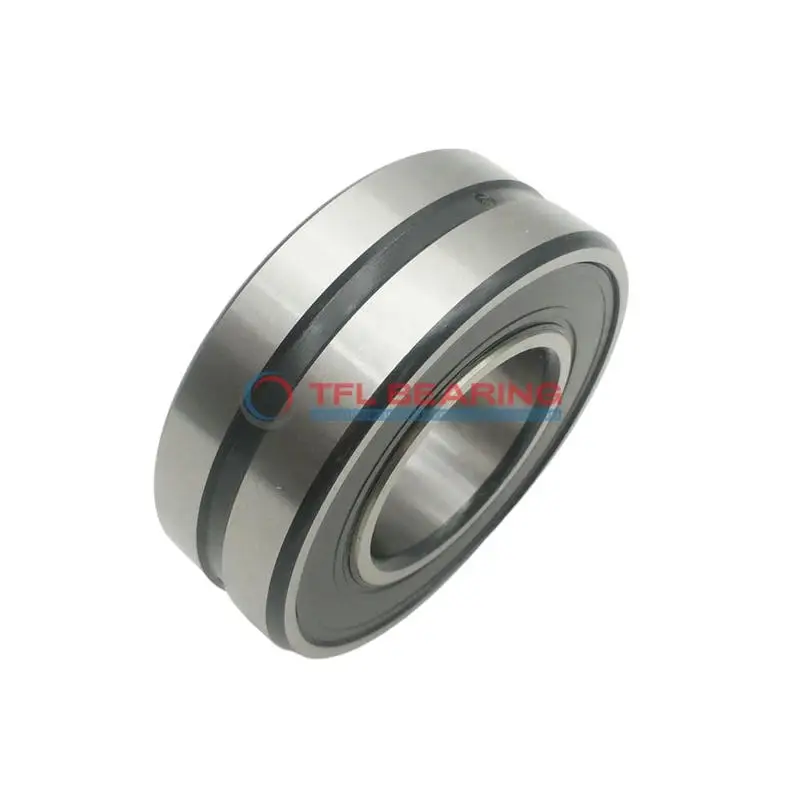

24036-2CS5/C3GEM9W513 Double Row Spherical Roller Bearing

24036-2CS5/C3GEM9W513 Double Row Spherical Roller Bearing

The 24036-2CS5/C3GEM9W513 is a double-row spherical roller bearing with a 180mm bore and 280mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 255383 lbf and operates smoothly at speeds up to 490 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

With a C3 radial clearance, it accommodates slight misalignments, making it suitable for heavy-duty applications. Ideal for industrial machinery like gearboxes or conveyors where high radial loads are common.

Weighing 23kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24036-2CS5/C3GEM9W513
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 280 x 100 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 100 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 194 mm
  • Shoulder/Recess Dia Of Outer Ring 251 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 255383 lbf
  • Static Radial Load 388919 lbf
  • Max Speed 490 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 23 kg
  • Price （US$） US$416.88

Features

How Does 24036-2CS5/C3GEM9W513 Bearing Handle Combined Loads?

24036-2CS5/C3GEM9W513 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.

Its chrome steel construction ensures durability, with a dynamic radial load capacity of 255383 lbf.

The double-seal design protects against contaminants, making it suitable for harsh environments.

With a maximum speed of 490 rpm, it balances performance and reliability in heavy-duty applications.

Application

Industrial Uses of 24036-2CS5/C3GEM9W513 Bearing
24036-2CS5/C3GEM9W513 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles combined loads efficiently. The spherical rollers adapt well to misalignment, ensuring reliable performance in tough conditions.

Where Is 24036-2CS5/C3GEM9W513 Bearing Used?
You’ll often find 24036-2CS5/C3GEM9W513 Bearing in conveyor systems and large gearboxes, thanks to its high dynamic radial load capacity. The double seals help keep contaminants out, making it suitable for dusty or humid environments.

Built for Heavy-Duty Use: 24036-2CS5/C3GEM9W513 Bearing
24036-2CS5/C3GEM9W513 Bearing excels in paper mills and steel plants, where its chrome steel construction resists wear under heavy loads. The C3 radial clearance allows for thermal expansion, ideal for high-temperature applications.

Automotive vs Aerospace: Applications of 24036-2CS5/C3GEM9W513 Bearing
In automotive settings, 24036-2CS5/C3GEM9W513 Bearing supports large drivetrain components, while in aerospace, its precision suits auxiliary systems. The metric sizing ensures compatibility with global machinery standards.

Key Fields for 24036-2CS5/C3GEM9W513 Bearing
24036-2CS5/C3GEM9W513 Bearing is a go-to for wind turbines and marine propulsion systems, where durability and load capacity matter. Its steel cage and rollers provide long service life even in demanding conditions.
