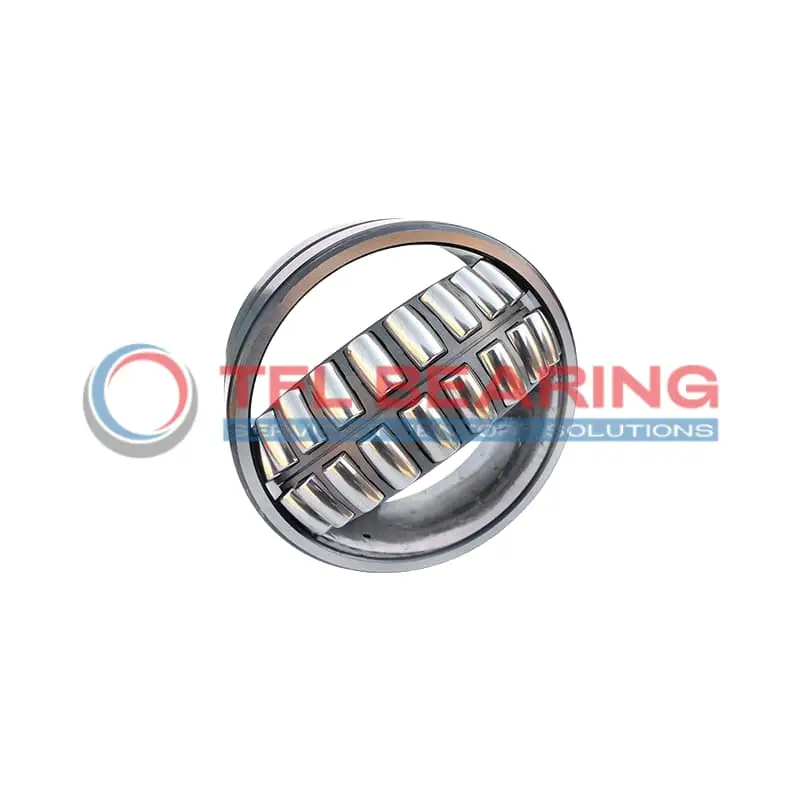

24026 CC/W33 Double Row Spherical Roller Bearing

24026 CC/W33 Double Row Spherical Roller Bearing

The 24026 CC/W33 is a double-row spherical roller bearing with a 130mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 127916 lbf and operates smoothly at speeds up to 3000 RPM.

Its spherical roller design accommodates misalignment, while the steel cage ensures durability. The open construction allows for easy lubrication, with grooves and holes for efficient maintenance.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads and misalignment are common. It works in temperatures from -30°C to 200°C.

Weighing 7.75kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for reliable replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24026 CC/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 200 x 69 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 69 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 145 mm
  • Shoulder/Recess Dia Of Outer Ring 175 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 127916 lbf
  • Static Radial Load 183219 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.75 kg
  • Price （US$） US$232.16

Features

Performance Features of 24026 CC/W33 Bearing

24026 CC/W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 127916 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

24026 CC/W33 Bearing operates efficiently within a temperature range of -30° to 200°C.
Its steel cage ensures stability and keeps the rollers aligned during high-speed rotation.

With a maximum speed of 3000 rpm, it balances performance and longevity.
The lubrication groove and hole design facilitate proper lubrication, reducing maintenance needs.

Application

Industrial Uses of 24026 CC/W33 Bearing
The 24026 CC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
Its spherical roller construction allows for slight misalignment, making it suitable for rugged industrial environments.

Where Is 24026 CC/W33 Bearing Used?
In mining equipment, 24026 CC/W33 Bearing provides reliable performance under extreme loads and harsh conditions.
The chrome steel material ensures durability, while the lubrication groove extends service life in high-speed applications.

Built for Heavy-Duty Use: 24026 CC/W33 Bearing
For wind turbines, 24026 CC/W33 Bearing supports the main shaft, offering stability and resistance to variable loads.
The wide temperature range (-30° to 200°C) makes it adaptable to both cold and hot operating environments.

Automotive vs Aerospace: Applications of 24026 CC/W33 Bearing
In large trucks, 24026 CC/W33 Bearing is often found in wheel hubs, where it manages heavy loads and vibrations.
For aerospace applications, its precision and reliability make it suitable for auxiliary systems requiring consistent performance.

Key Fields for 24026 CC/W33 Bearing
The 24026 CC/W33 Bearing is ideal for paper mills, where its robust construction withstands continuous operation.
The steel cage and chrome steel rollers ensure minimal wear, even in dusty or humid conditions.
