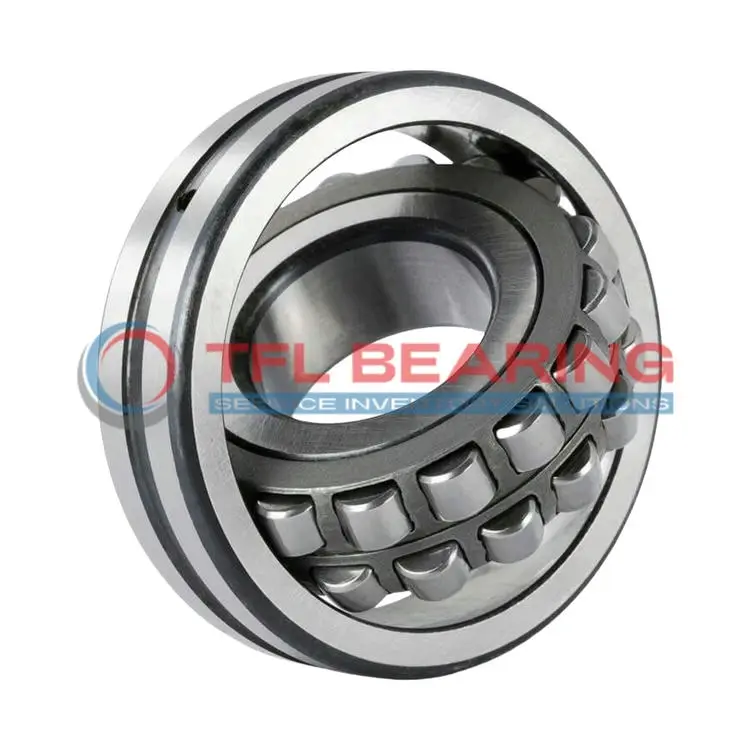

24015 CC/W33 Double Row Spherical Roller Bearing

24015 CC/W33 Double Row Spherical Roller Bearing

The 24015 CC/W33 is a double-row spherical roller bearing with a 75mm bore and 115mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 4069 lbf radially and spins smoothly at speeds up to 5300 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing operates efficiently in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are prevalent.

Weighing 1.4kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24015 CC/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 75 x 115 x 40 mm
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 84.2 mm
  • Shoulder/Recess Dia Of Outer Ring 100 mm
  • Width Of Lubrication Groove 5.5 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 4069 lbf
  • Static Radial Load 52156 lbf
  • Max Speed 5300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.4 kg
  • Price （US$） 156.65

Features

How Is 24015 CC/W33 Bearing Engineered for Reliability?

24015 CC/W33 Bearing features a double-row spherical roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability, even under high dynamic radial loads up to 4069 lbf.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 5300 rpm, it delivers consistent performance in demanding conditions.

24015 CC/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its lubrication groove and hole design ensure proper grease distribution, enhancing reliability.

Application

Industrial Uses of 24015 CC/W33 Bearing
24015 CC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The spherical roller type also compensates for minor misalignments, ensuring reliable performance in rugged conditions.

What Makes 24015 CC/W33 Bearing a Preferred Choice?
In automotive applications, 24015 CC/W33 Bearing supports drivetrain components, offering durability under high radial and axial loads. Its chrome steel construction and lubrication grooves enhance longevity, even in demanding environments.

Built for Heavy-Duty Use: 24015 CC/W33 Bearing
For wind turbines, 24015 CC/W33 Bearing provides stability in gearboxes, thanks to its high dynamic load capacity. The wide temperature range (-30° to 200°C) makes it suitable for both cold and hot climates.

Automotive vs Aerospace: Applications of 24015 CC/W33 Bearing
In aerospace, 24015 CC/W33 Bearing is used in auxiliary systems, while in automotive, it excels in wheel hubs and transmissions. Its metric sizing ensures compatibility with global standards.

Essential Roles of 24015 CC/W33 Bearing
In mining equipment, 24015 CC/W33 Bearing withstands extreme loads and vibrations, reducing downtime. The steel cage and rollers ensure consistent performance, even in abrasive conditions.
