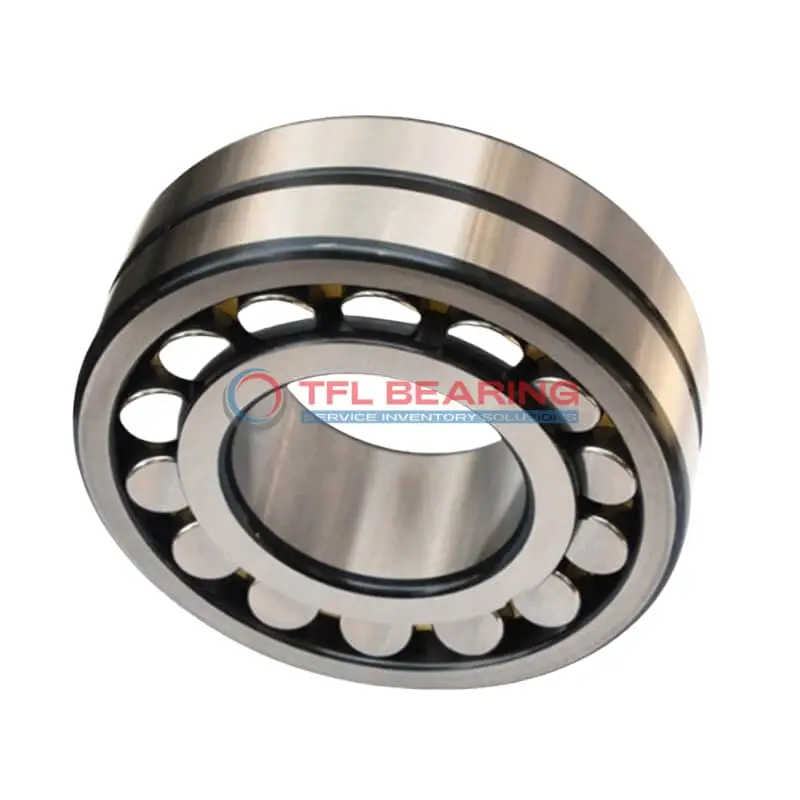

24015-2RS5/VT143 Double Row Spherical Roller Bearing

24015-2RS5/VT143 Double Row Spherical Roller Bearing

The 24015-2RS5/VT143 is a double-row spherical roller bearing with a 75mm bore and 115mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 4069 lbf and runs smoothly at speeds up to 2300 RPM.

Its double-seal design keeps contaminants out, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 1.55kg, it’s built to handle demanding environments while complying with RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24015-2RS5/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 75 x 115 x 40 mm
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 81.8 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 4069 lbf
  • Static Radial Load 52156 lbf
  • Max Speed 2300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg

Features

Designed for Durability: 24015-2RS5/VT143 Bearing

24015-2RS5/VT143 Bearing features double-row spherical rollers, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures strength and resistance to wear, even under heavy loads.

The double-seal design protects 24015-2RS5/VT143 Bearing from dust and moisture, enhancing its lifespan.
With a temperature range of -30° to 200°C, it performs reliably in varied environments.

24015-2RS5/VT143 Bearing’s dynamic radial load capacity of 4069 lbf makes it suitable for demanding applications.
Its steel cage maintains roller alignment, reducing friction and improving efficiency.

The lubrication groove and holes in 24015-2RS5/VT143 Bearing ensure smooth operation with minimal maintenance.
This design helps distribute lubricant evenly, extending service intervals.

Application

Industrial Uses of 24015-2RS5/VT143 Bearing
24015-2RS5/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

In automotive applications, 24015-2RS5/VT143 Bearing supports components like axle systems and gearboxes, thanks to its high radial load capacity. The double seals provide added protection against contaminants in rugged environments.

For industrial fans and blowers, 24015-2RS5/VT143 Bearing’s temperature resistance up to 200°C makes it a reliable choice. The steel cage and chrome steel rollers ensure durability even in high-speed scenarios.

What Makes 24015-2RS5/VT143 Bearing a Preferred Choice?
24015-2RS5/VT143 Bearing excels in conveyor systems, where its double-sealed design keeps lubrication intact. The metric sizing ensures compatibility with a wide range of European and Asian equipment.

Built for Heavy-Duty Use: 24015-2RS5/VT143 Bearing
24015-2RS5/VT143 Bearing is ideal for mining equipment, handling both radial and axial loads with ease. The lubrication groove and hole simplify maintenance, extending service life.

In robotics, 24015-2RS5/VT143 Bearing’s precision and load capacity make it suitable for robotic arms and automated systems. The CN radial clearance ensures consistent performance under varying conditions.
