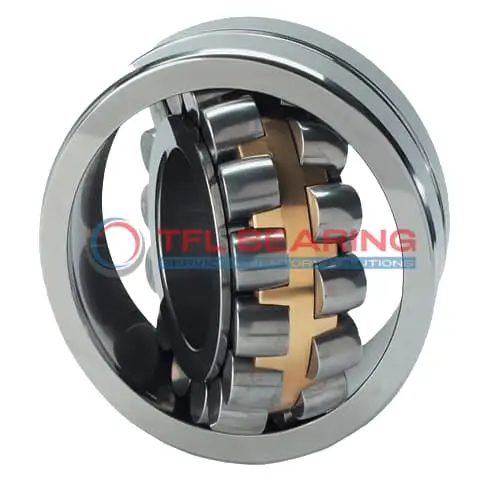

23992 CAK/W33 Double Row Spherical Roller Bearing

23992 CAK/W33 Double Row Spherical Roller Bearing

The 23992 CAK/W33 is a double-row spherical roller bearing with a large 460mm bore and 620mm outer diameter, built from tough chrome steel for durability. It handles heavy combined loads up to 575061 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage and open design allow for easy lubrication, with a 9mm hole and 16.7mm groove for maintenance. The tapered bore ensures a secure fit, while the spherical rollers accommodate misalignment.

This bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments. It’s interchangeable with SKF models for easy replacement.

Ideal for heavy machinery like crushers or mining equipment where high radial and axial loads are common. Weighing 99.5kg, it’s robust for industrial use and complies with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23992 CAK/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 620 x 118 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 118 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 516 mm
  • Shoulder/Recess Dia Of Outer Ring 574 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 575061 lbf
  • Static Radial Load 1124045 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 99.5 kg
  • Price （US$） US$5,845.60

Features

Why Choose 23992 CAK/W33 Bearing for Precision Tasks?

23992 CAK/W33 Bearing features a double-row spherical roller design, ideal for handling combined loads with precision.
Its chrome steel rings and rollers provide high resistance to wear, ensuring long-term reliability.

The brass cage maintains roller alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 575061 lbf, it excels in demanding industrial applications.

23992 CAK/W33 Bearing operates efficiently within a temperature range of -30° to 200°C.
Its tapered bore design simplifies installation, making it suitable for heavy machinery.

Application

Industrial Uses of 23992 CAK/W33 Bearing
23992 CAK/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23992 CAK/W33 Bearing supports the main shaft, thanks to its high dynamic radial load capacity. The tapered bore allows for secure fitting, reducing maintenance needs in harsh environments.

For mining equipment, 23992 CAK/W33 Bearing’s spherical rollers accommodate misalignment, making it ideal for conveyor systems. Its chrome steel construction provides long-lasting performance in dusty conditions.

Where Is 23992 CAK/W33 Bearing Used?
You’ll often find 23992 CAK/W33 Bearing in paper mills, where it supports large rollers under heavy loads. The open design simplifies lubrication, keeping operations running smoothly.

In steel plants, 23992 CAK/W33 Bearing handles extreme temperatures and heavy loads in rolling mills. Its robust construction ensures reliability in these demanding applications.

Built for Heavy-Duty Use: 23992 CAK/W33 Bearing
23992 CAK/W33 Bearing excels in construction equipment like cranes, where its high static radial load capacity is crucial. The metric sizing makes it compatible with global machinery standards.

For marine applications, 23992 CAK/W33 Bearing’s corrosion-resistant materials withstand salty environments. Its spherical rollers adapt to slight misalignments, reducing wear over time.

Automotive vs Aerospace: Applications of 23992 CAK/W33 Bearing
In large trucks, 23992 CAK/W33 Bearing supports axles, handling heavy loads with durability. The tapered bore ensures a secure fit, even under constant vibration.

For aerospace ground equipment, 23992 CAK/W33 Bearing’s high-speed capability and temperature range make it reliable. Its brass cage reduces friction, extending service life.
