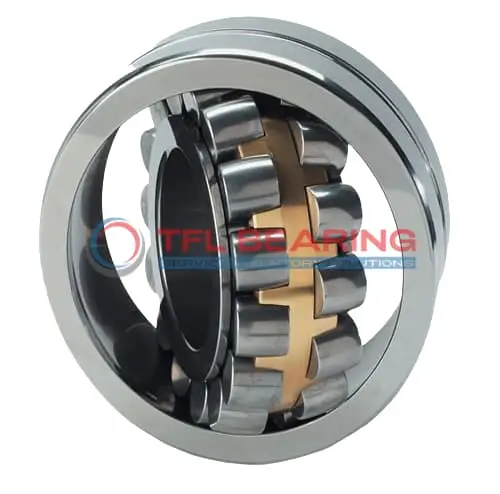

23992 CAK C3 W33 Double Row Spherical Roller Bearing

23992 CAK C3 W33 Double Row Spherical Roller Bearing

The 23992 CAK C3 W33 is a double-row spherical roller bearing with a large 460mm bore and 620mm outer diameter, built from tough chrome steel. It handles heavy combined loads up to 575061 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage and open design allow for easy lubrication, while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing operates well in conditions from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where robust load handling is needed.

Weighing 105kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23992 CAK C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 620 x 118 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 118 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 516 mm
  • Shoulder/Recess Dia Of Outer Ring 574 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 575061 lbf
  • Static Radial Load 1124045 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 105 kg
  • Price （US$） US$4,496.22

Features

Performance Features of 23992 CAK C3 W33 Bearing

23992 CAK C3 W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 575061 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1000 rpm, it maintains performance under demanding conditions.

23992 CAK C3 W33 Bearing operates efficiently in temperatures ranging from -30° to 200 °C.
Its C3 radial clearance allows for thermal expansion, ensuring reliable operation in varying environments.

The tapered bore design simplifies installation and alignment, saving time during setup.
Lubrication grooves and holes ensure consistent lubrication, extending the bearing’s service life.

Weighing 105 kg, 23992 CAK C3 W33 Bearing is robust yet designed for precision performance.
Its double-row spherical rollers accommodate misalignment, reducing stress on surrounding components.

Application

Industrial Uses of 23992 CAK C3 W33 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23992 CAK C3 W33 Bearing provides reliable performance, thanks to its spherical roller design that accommodates misalignment. Its large bore size makes it ideal for supporting main shafts in renewable energy applications.

For mining equipment, 23992 CAK C3 W33 Bearing’s high dynamic load capacity ensures durability in harsh environments. The tapered bore design simplifies installation and maintenance in hard-to-reach areas.

Why Is 23992 CAK C3 W33 Bearing Essential in Machinery?
Its chrome steel construction offers excellent wear resistance, making it suitable for continuous operation in industrial settings. The C3 radial clearance allows for thermal expansion during high-speed runs.

Built for Heavy-Duty Use: 23992 CAK C3 W33 Bearing
This bearing excels in paper mill machinery, where its robust design withstands constant moisture and heavy loads. The lubrication groove ensures consistent performance even in demanding conditions.
