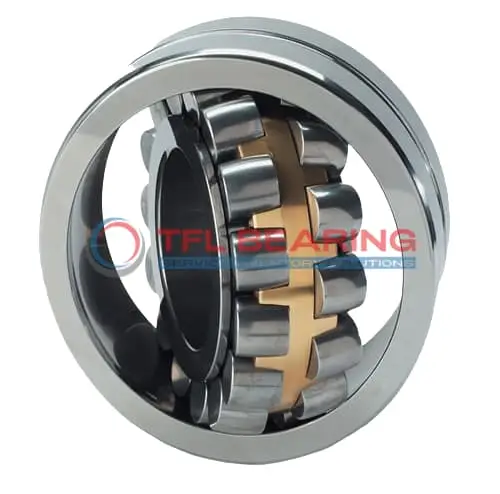

23992 CAK/C08W33 Double Row Spherical Roller Bearing

23992 CAK/C08W33 Double Row Spherical Roller Bearing

The 23992 CAK/C08W33 is a double-row spherical roller bearing with a 460mm bore and 620mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 575061 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a tapered bore (1:12), it ensures secure fitting, and its spherical rollers accommodate misalignment. Ideal for heavy-duty applications like industrial gearboxes or large machinery.

Weighing 105kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23992 CAK/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 620 x 118 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 118 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 516 mm
  • Shoulder/Recess Dia Of Outer Ring 574 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 575061 lbf
  • Static Radial Load 1124045 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 105 kg
  • Price （US$） US$6,431.47

Features

Performance Features of 23992 CAK/C08W33 Bearing

23992 CAK/C08W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 575061 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1000 rpm, it delivers reliable performance under demanding conditions.

23992 CAK/C08W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit on shafts.

The open seal type allows for easy lubrication, maintaining smooth operation over time.
Weighing 105 kg, it is designed for robust industrial use while maintaining precision.

Application

Industrial Uses of 23992 CAK/C08W33 Bearing
23992 CAK/C08W33 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row spherical design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

What Industries Rely on 23992 CAK/C08W33 Bearing?
In the steel industry, 23992 CAK/C08W33 Bearing supports rolling mills, thanks to its robust chrome steel construction and high load capacity. Its tapered bore design also simplifies installation in large-scale equipment.

Built for Heavy-Duty Use: 23992 CAK/C08W33 Bearing
This bearing excels in wind turbine applications, where its spherical rollers accommodate misalignment and reduce stress on components. The lubrication groove design further enhances its longevity in continuous operation.

Automotive vs Aerospace: Applications of 23992 CAK/C08W33 Bearing
While 23992 CAK/C08W33 Bearing isn’t typically used in aerospace, it’s ideal for large commercial vehicles like buses and trucks, where durability and load handling are key. The metric sizing ensures compatibility with global manufacturing standards.

Perfect Fit for Automation: 23992 CAK/C08W33 Bearing
In automated production lines, 23992 CAK/C08W33 Bearing provides reliable performance in robotic arms and conveyor systems. Its high temperature tolerance makes it suitable for environments with fluctuating thermal conditions.
