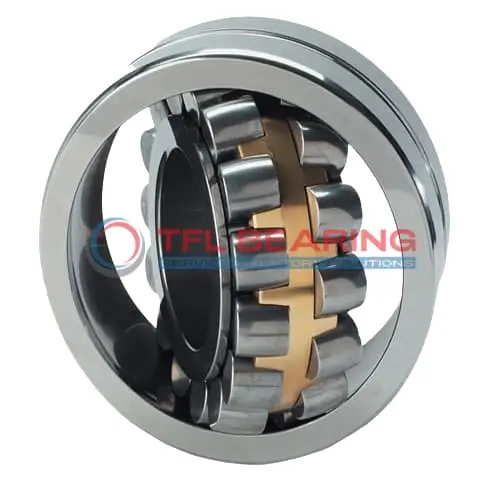

23992 CAK/C083W33 Double Row Spherical Roller Bearing

23992 CAK/C083W33 Double Row Spherical Roller Bearing

The 23992 CAK/C083W33 is a double-row spherical roller bearing with a large 460mm bore and 620mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 575061 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage and spherical roller design ensure durability and reliable performance under heavy loads. The tapered bore (1:12 ratio) allows for secure fitting, while the open seal type simplifies lubrication.

This bearing suits high-load applications like industrial gearboxes or mining equipment, with a temperature range of -30°C to 200°C. It’s interchangeable with SKF models, making replacements straightforward.

Weighing 105kg, it’s designed for robust machinery. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23992 CAK/C083W33
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 620 x 118 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 118 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 516 mm
  • Shoulder/Recess Dia Of Outer Ring 574 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 575061 lbf
  • Static Radial Load 1124045 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 105 kg
  • Price （US$） US$6,431.47

Features

Performance Features of 23992 CAK/C083W33 Bearing

23992 CAK/C083W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 575061 lbf, ensuring dependable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1000 rpm, it delivers consistent performance under high-stress conditions.

23992 CAK/C083W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, making it suitable for various industrial uses.

The lubrication groove and hole ensure smooth operation, even in demanding environments.
This design reduces maintenance needs, lowering overall operational costs.

Application

Industrial Uses of 23992 CAK/C083W33 Bearing
23992 CAK/C083W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

In mining equipment, 23992 CAK/C083W33 Bearing provides reliable performance in conveyor systems and gearboxes, thanks to its high dynamic radial load capacity. The tapered bore design simplifies installation in large shafts.

For wind turbines, 23992 CAK/C083W33 Bearing’s ability to withstand combined loads makes it ideal for main shaft applications. Its chrome steel construction and C3 radial clearance ensure durability in fluctuating temperatures.

Where Is 23992 CAK/C083W33 Bearing Used?
You’ll often find 23992 CAK/C083W33 Bearing in paper mills, supporting rollers that endure constant heavy loads. Its open design allows for easy lubrication, extending service life in dusty environments.

In steel plants, 23992 CAK/C083W33 Bearing handles the extreme conditions of rolling mills, where its high static radial load capacity prevents deformation. The metric sizing ensures compatibility with European machinery standards.

Built for Heavy-Duty Use: 23992 CAK/C083W33 Bearing
23992 CAK/C083W33 Bearing excels in construction equipment like cranes and excavators, where its spherical rollers compensate for shaft deflections. The 1000 rpm max speed suits most heavy-duty applications.

For marine propulsion systems, 23992 CAK/C083W33 Bearing’s corrosion-resistant materials and lubrication grooves ensure reliability in harsh saltwater conditions. The 118 mm width provides stability under varying loads.

Light-Duty vs Heavy-Duty: Best Uses for 23992 CAK/C083W33 Bearing
While light-duty applications might use smaller bearings, 23992 CAK/C083W33 Bearing shines in heavy industries like cement production, where its 575061 lbf dynamic load rating is essential. The brass cage reduces friction during prolonged use.

In hydropower plants, 23992 CAK/C083W33 Bearing supports turbine shafts that face both radial and axial forces. Its -30° to 200°C temperature range handles seasonal variations without performance loss.
