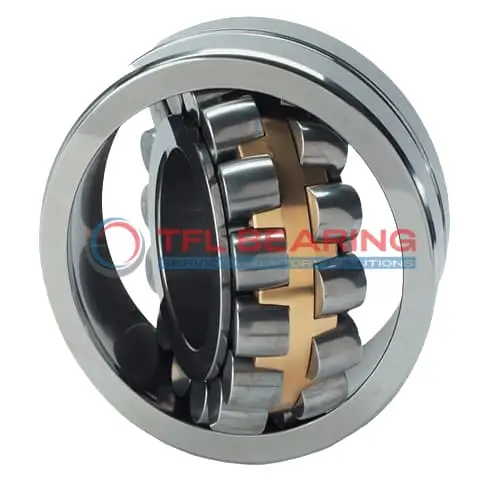

23992 CAK C083 W33 Double Row Spherical Roller Bearing

23992 CAK C083 W33 Double Row Spherical Roller Bearing

The 23992 CAK C083 W33 is a double-row spherical roller bearing with a large 460mm bore and 620mm outer diameter, built from tough chrome steel. It handles heavy combined loads up to 575061 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) simplifies installation. The bearing operates in temperatures from -30°C to 200°C and requires regular lubrication for optimal performance.

With a C3 radial clearance and P5 precision, it suits demanding applications like heavy machinery or industrial gearboxes. Weighing 105kg, it’s a robust choice for high-load scenarios.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards, making it a reliable option for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23992 CAK C083 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 620 x 118 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 118 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 516 mm
  • Shoulder/Recess Dia Of Outer Ring 574 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 575061 lbf
  • Static Radial Load 1124045 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 105 kg
  • Price （US$） US$4,946.94

Features

Performance Features of 23992 CAK C083 W33 Bearing

23992 CAK C083 W33 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 575061 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1000 rpm, it balances high load capacity and operational efficiency.

23992 CAK C083 W33 Bearing operates in temperatures from -30° to 200°C, adapting to various industrial conditions.
Its tapered bore design simplifies installation, ensuring secure fitting and alignment.

The lubrication groove and hole in 23992 CAK C083 W33 Bearing facilitate easy maintenance, prolonging service life.
Its C3 radial clearance provides optimal performance under varying thermal conditions.

Application

Industrial Uses of 23992 CAK C083 W33 Bearing
The 23992 CAK C083 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads.
Its brass cage and chrome steel construction ensure durability in harsh environments, making it a reliable choice for mining and construction equipment.

What Makes 23992 CAK C083 W33 Bearing a Preferred Choice?
In paper mills and steel plants, 23992 CAK C083 W33 Bearing excels due to its high load capacity and resistance to extreme temperatures.
The tapered bore design simplifies installation, while the lubrication groove extends service life in continuous operation.

Built for Heavy-Duty Use: 23992 CAK C083 W33 Bearing
For wind turbine applications, 23992 CAK C083 W33 Bearing provides stable performance under fluctuating loads and variable speeds.
Its C3 radial clearance accommodates thermal expansion, ensuring smooth rotation even in demanding conditions.

Automotive vs Aerospace: Applications of 23992 CAK C083 W33 Bearing
In large commercial vehicles, 23992 CAK C083 W33 Bearing supports axles and transmissions, offering robust performance under combined loads.
While not typically used in aerospace, its precision and reliability make it suitable for ground support equipment and heavy-duty transport systems.

Where Is 23992 CAK C083 W33 Bearing Used?
You’ll find 23992 CAK C083 W33 Bearing in industrial gearboxes, where its spherical rollers compensate for shaft deflections.
The open design allows for easy relubrication, reducing downtime in high-speed production lines.
