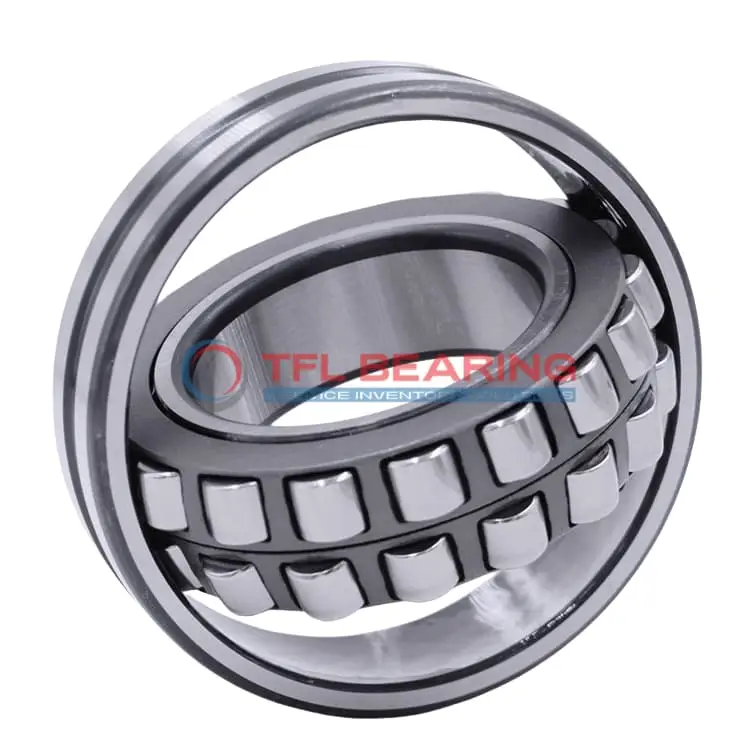

23984 CC/W513 Double Row Spherical Roller Bearing

23984 CC/W513 Double Row Spherical Roller Bearing

The 23984 CC/W513 is a double-row spherical roller bearing with a 420mm bore and 560mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 468277 lbf and operates smoothly at speeds up to 1100 RPM.

Its open design and steel cage ensure durability, while the lubrication groove and holes simplify maintenance. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 77kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23984 CC/W513
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 560 x 106 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 106 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 459 mm
  • Shoulder/Recess Dia Of Outer Ring 520 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 468277 lbf
  • Static Radial Load 932957 lbf
  • Max Speed 1100 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 77 kg
  • Price （US$） US$4,594.42

Features

Performance Features of 23984 CC/W513 Bearing

23984 CC/W513 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 468277 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 1100 rpm, it maintains efficiency in demanding environments.

23984 CC/W513 Bearing operates in temperatures from -30° to 200°C, providing reliable performance.
The steel cage keeps the rollers aligned, reducing wear and extending the bearing’s lifespan.

Lubrication grooves and holes in 23984 CC/W513 Bearing ensure consistent lubrication for optimal performance.
Its robust construction and precise tolerances make it a dependable choice for industrial use.

Application

Industrial Uses of 23984 CC/W513 Bearing
The 23984 CC/W513 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles combined loads effectively. Its large bore size makes it suitable for robust industrial applications.

In automotive manufacturing, 23984 CC/W513 Bearing supports large components such as axle systems, providing reliable performance under high radial loads. The chrome steel construction ensures durability even in demanding conditions.

For automation systems, 23984 CC/W513 Bearing’s high load capacity and speed rating make it ideal for robotic arms and conveyor belts. The open design allows for easy lubrication, extending its service life.

Medical equipment like MRI machines benefit from 23984 CC/W513 Bearing’s precision and stability. The steel cage enhances its resistance to wear, ensuring consistent operation in critical environments.

In consumer electronics, 23984 CC/W513 Bearing can be found in large printers and industrial fans, where its smooth operation reduces noise and vibration. The metric sizing ensures compatibility with various European and Asian models.
