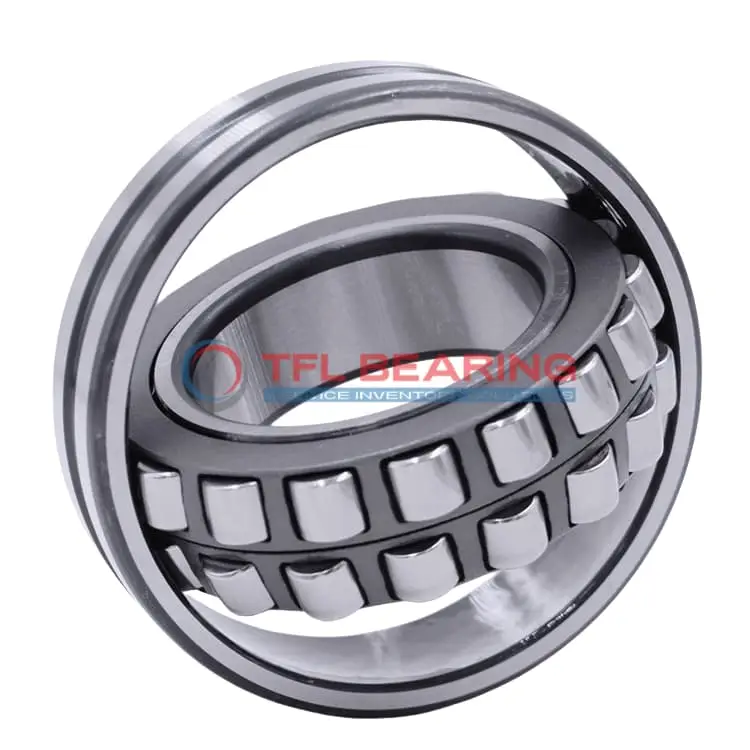

23984 CC/C3W513 Double Row Spherical Roller Bearing

23984 CC/C3W513 Double Row Spherical Roller Bearing

The 23984 CC/C3W513 is a double-row spherical roller bearing with a 420mm bore and 560mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 468277 lbf and runs smoothly at speeds up to 1100 RPM.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy loads. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or industrial gearboxes where high radial loads are common.

Weighing 77kg, it’s a robust choice for demanding applications. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23984 CC/C3W513
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 560 x 106 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 106 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 459 mm
  • Shoulder/Recess Dia Of Outer Ring 520 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 468277 lbf
  • Static Radial Load 932957 lbf
  • Max Speed 1100 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 77 kg
  • Price （US$） US$4,594.42

Features

Performance Features of 23984 CC/C3W513 Bearing

23984 CC/C3W513 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 468277 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 1100 rpm, it delivers reliable performance in various industrial settings.

23984 CC/C3W513 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance provides optimal performance under varying thermal conditions.

The steel cage maintains roller alignment, reducing wear and extending the bearing’s lifespan.
Lubrication grooves and holes ensure consistent lubrication, enhancing operational reliability.

Weighing 77 kg, 23984 CC/C3W513 Bearing is designed for robust applications requiring durability.
Its cylindrical bore simplifies installation, saving time and effort during setup.

Application

Industrial Uses of 23984 CC/C3W513 Bearing
23984 CC/C3W513 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row spherical design handles both radial and axial loads efficiently. The large bore size makes it suitable for high-capacity applications.

In wind turbines, 23984 CC/C3W513 Bearing supports the main shaft, ensuring smooth rotation even under varying wind conditions. Its chrome steel construction offers durability in harsh outdoor environments.

For paper mills, 23984 CC/C3W513 Bearing provides reliable performance in rollers and drying cylinders, where consistent operation is essential. The C3 radial clearance allows for thermal expansion during high-speed runs.

Where Is 23984 CC/C3W513 Bearing Used?
You’ll often find 23984 CC/C3W513 Bearing in construction equipment like cranes and excavators, where its robust design handles heavy loads with ease. The open seal type simplifies lubrication maintenance.

In steel plants, 23984 CC/C3W513 Bearing is a go-to choice for rolling mills, thanks to its high dynamic radial load capacity. The steel cage ensures stability even at elevated temperatures.

Built for Heavy-Duty Use: 23984 CC/C3W513 Bearing
23984 CC/C3W513 Bearing excels in marine applications, such as ship propulsion systems, where its corrosion-resistant materials withstand salty environments. The wide temperature range ensures performance in varying climates.

For railway applications, 23984 CC/C3W513 Bearing is used in axle boxes, providing smooth operation under heavy loads. Its spherical roller design compensates for misalignment during travel.

Automotive vs Aerospace: Applications of 23984 CC/C3W513 Bearing
In automotive testing rigs, 23984 CC/C3W513 Bearing handles combined loads during durability tests. Its precision engineering ensures accurate results over long periods.

For aerospace ground equipment, 23984 CC/C3W513 Bearing supports heavy components like landing gear testers. The high static radial load capacity makes it a reliable choice for safety-critical applications.
