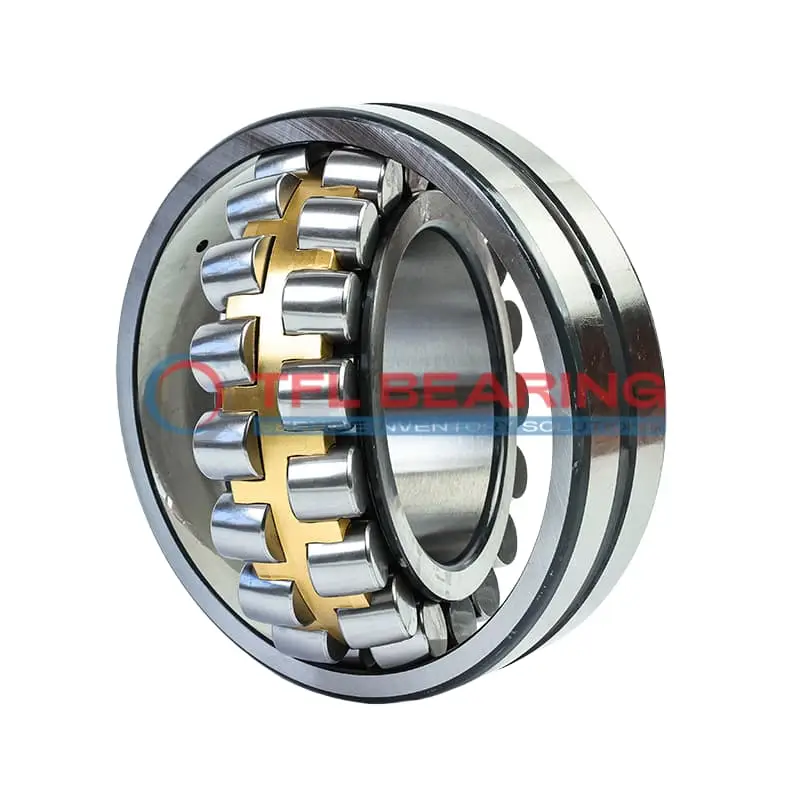

23972 CAM CO4 W33 Double Row Spherical Roller Bearing

23972 CAM CO4 W33 Double Row Spherical Roller Bearing

The 23972 CAM CO4 W33 is a double-row spherical roller bearing with a 360mm bore and 480mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 327322 lbf and runs smoothly at speeds up to 1300 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The bearing features a lubrication groove and holes for convenient maintenance.

This model is interchangeable with SKF bearings, making it a reliable replacement option. Ideal for heavy-duty applications like industrial machinery or mining equipment where high radial loads are present.

Weighing 45kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23972 CAM CO4 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 360 x 480 x 90 mm
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 90 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 394 mm
  • Shoulder/Recess Dia Of Outer Ring 447 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 327322 lbf
  • Static Radial Load 618225 lbf
  • Max Speed 1300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 45 kg
  • Price （US$） US$2,203.56

Features

How Does 23972 CAM CO4 W33 Bearing Handle Combined Loads?

23972 CAM CO4 W33 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures high strength, with a dynamic radial load capacity of 327322 lbf.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1300 rpm, it performs reliably in demanding industrial applications.

23972 CAM CO4 W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its open design allows for easy lubrication, ensuring smooth operation over extended periods.

Application

Industrial Uses of 23972 CAM CO4 W33 Bearing
23972 CAM CO4 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

What Makes 23972 CAM CO4 W33 Bearing a Preferred Choice?
In mining equipment, 23972 CAM CO4 W33 Bearing excels due to its robust chrome steel construction and high load capacity. Its lubrication groove design simplifies maintenance in harsh environments.

Built for Heavy-Duty Use: 23972 CAM CO4 W33 Bearing
23972 CAM CO4 W33 Bearing is ideal for paper mills and steel plants, where continuous operation demands reliability. The spherical roller design compensates for misalignment, reducing wear.

Automotive vs Aerospace: Applications of 23972 CAM CO4 W33 Bearing
While 23972 CAM CO4 W33 Bearing suits large vehicles like trucks, its high-temperature tolerance also makes it useful in aerospace components. The metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 23972 CAM CO4 W33 Bearing
23972 CAM CO4 W33 Bearing supports robotic arms in automated factories, offering precision and durability. The open seal type allows for easy lubrication, extending service life.
