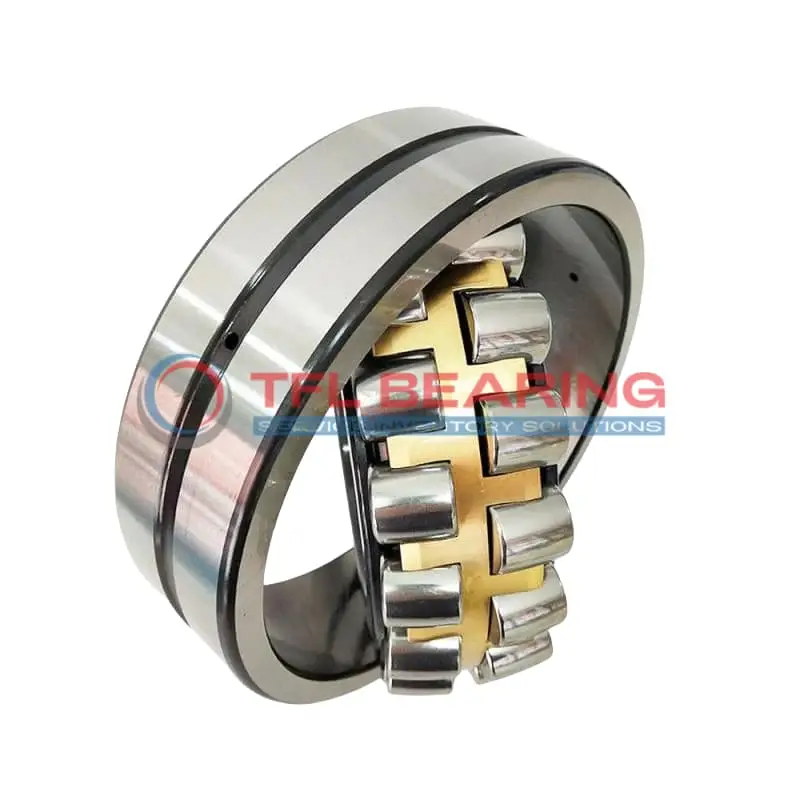

239/530 CAK/C083W33 Double Row Spherical Roller Bearing

239/530 CAK/C083W33 Double Row Spherical Roller Bearing

The 239/530 CAK/C083W33 is a double-row spherical roller bearing with a large 530mm bore and 710mm outer diameter, built from tough chrome steel. It handles heavy combined loads up to 743668 lbf and runs smoothly at speeds up to 900 RPM.

Its brass cage and spherical rollers ensure durability, while the tapered bore design allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or large gearboxes where high radial and axial loads are present.

Weighing 155kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, it requires regular lubrication for optimal performance. The open design simplifies maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 239/530 CAK/C083W33
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 710 x 136 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance +0.07mm to 0
  • Outer Dia 710 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 136 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 594 mm
  • Shoulder/Recess Dia Of Outer Ring 661 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 743668 lbf
  • Static Radial Load 150622 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 155 kg
  • Price （US$） US$9,432.31

Features

Performance Features of 239/530 CAK/C083W33 Bearing

239/530 CAK/C083W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 743,668 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller alignment, reducing friction and enhancing durability.
With a maximum speed of 900 rpm, it maintains stable performance under demanding conditions.

239/530 CAK/C083W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reliable operation.

The lubrication groove and hole design in 239/530 CAK/C083W33 Bearing facilitate consistent grease distribution.
This feature helps extend maintenance intervals, reducing downtime and operational costs.

Application

Industrial Uses of 239/530 CAK/C083W33 Bearing
239/530 CAK/C083W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

Where Is 239/530 CAK/C083W33 Bearing Used?
In mining equipment, 239/530 CAK/C083W33 Bearing supports large rotating components, thanks to its robust chrome steel construction. Its tapered bore design simplifies installation in heavy-duty applications.

Built for Heavy-Duty Use: 239/530 CAK/C083W33 Bearing
239/530 CAK/C083W33 Bearing excels in paper mills, where its high dynamic load capacity withstands constant vibration. The open seal type allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 239/530 CAK/C083W33 Bearing
In wind turbines, 239/530 CAK/C083W33 Bearing handles combined loads from rotor blades, while its temperature range suits harsh environments. The C3 radial clearance accommodates thermal expansion.

Key Fields for 239/530 CAK/C083W33 Bearing
239/530 CAK/C083W33 Bearing is ideal for steel mills, where its spherical rollers compensate for shaft deflection. The metric sizing ensures compatibility with European industrial standards.
