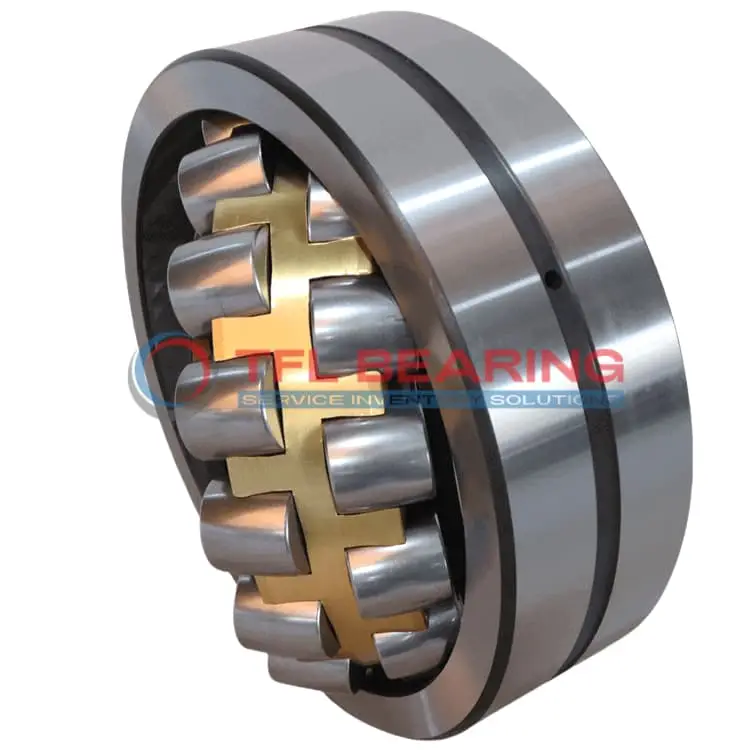

239/530 CA/C083VE589 Double Row Spherical Roller Bearing

239/530 CA/C083VE589 Double Row Spherical Roller Bearing

The 239/530 CA/C083VE589 is a double-row spherical roller bearing with a large 530mm bore and 710mm outer diameter, built from tough chrome steel. It handles combined loads up to 743668 lbf and runs smoothly at speeds up to 900 RPM.

Its brass cage and spherical rollers provide reliable performance under heavy radial loads, while the open design allows for easy lubrication. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a C3 radial clearance and P5 precision, it ensures stable operation in industrial applications. The lubrication groove and holes simplify maintenance, extending its service life.

This model is interchangeable with SKF bearings, ideal for heavy machinery like crushers or large gearboxes. Weighing 155kg, it’s a robust choice for high-load scenarios. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 239/530 CA/C083VE589
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 710 x 136 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 710 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 136 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 594 mm
  • Shoulder/Recess Dia Of Outer Ring 661 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 743668 lbf
  • Static Radial Load 150622 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 155 kg
  • Price （US$） US$9,432.31

Features

How Does 239/530 CA/C083VE589 Bearing Handle Combined Loads?

239/530 CA/C083VE589 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined radial and thrust loads.
Its dynamic radial load capacity reaches 743668 lbf, ensuring dependable performance in heavy-duty applications.
The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 900 rpm, it delivers a balance of strength and efficiency.

What Ensures Smooth Operation in 239/530 CA/C083VE589 Bearing?

239/530 CA/C083VE589 Bearing features a double-row spherical roller design, allowing for smooth rotation even under misalignment.
The chrome steel construction provides excellent wear resistance, ensuring long-term reliability.
Lubrication grooves and holes facilitate consistent oil distribution, reducing maintenance needs.
Its C3 radial clearance accommodates thermal expansion, making it suitable for varying operating conditions.

Why Choose 239/530 CA/C083VE589 Bearing for High-Temperature Applications?

239/530 CA/C083VE589 Bearing operates effectively in temperatures ranging from -30° to 200 °C.
The chrome steel materials resist thermal deformation, maintaining performance in demanding environments.
Its brass cage ensures stability, even under high thermal stress.
This makes it ideal for industrial applications where temperature fluctuations are common.

Built for Reliability: 239/530 CA/C083VE589 Bearing

239/530 CA/C083VE589 Bearing is designed for durability, with chrome steel rollers and rings providing long service life.
Its P5 radial run-out ensures precision, making it suitable for high-accuracy applications.
The open seal design allows for easy lubrication, reducing downtime.
With a static radial load capacity of 150622 lbf, it handles heavy loads with ease.

How Is 239/530 CA/C083VE589 Bearing Engineered for Efficiency?

239/530 CA/C083VE589 Bearing incorporates a double-row spherical roller design, optimising load distribution.
The brass cage minimises friction, contributing to smoother operation and energy efficiency.
Lubrication grooves ensure consistent oil flow, reducing wear and maintenance.
Its cylindrical bore simplifies installation, saving time and effort.

Application

Industrial Uses of 239/530 CA/C083VE589 Bearing
The 239/530 CA/C083VE589 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row spherical design handles high radial and axial loads.
Its brass cage and chrome steel rollers ensure durability in harsh environments, making it a reliable choice for long-term operation.

Where Is 239/530 CA/C083VE589 Bearing Used?
You’ll find the 239/530 CA/C083VE589 Bearing in large industrial fans and paper mill machinery, where its high load capacity and stability are essential.
The C3 radial clearance allows for thermal expansion, perfect for applications with fluctuating temperatures.

Built for Heavy-Duty Use: 239/530 CA/C083VE589 Bearing
This bearing excels in wind turbine gearboxes, where its spherical rollers accommodate misalignment and reduce stress on components.
The open seal design simplifies lubrication, ensuring smooth performance even at high speeds.

Automotive vs Aerospace: Applications of 239/530 CA/C083VE589 Bearing
In automotive testing rigs, the 239/530 CA/C083VE589 Bearing supports heavy loads during durability tests.
For aerospace ground equipment, its temperature range and precision make it suitable for handling large assemblies.

Key Fields for 239/530 CA/C083VE589 Bearing
The 239/530 CA/C083VE589 Bearing is ideal for steel mill rollers, where its robust construction withstands extreme pressures.
Its metric sizing and P5 radial run-out ensure compatibility with precision industrial systems.
