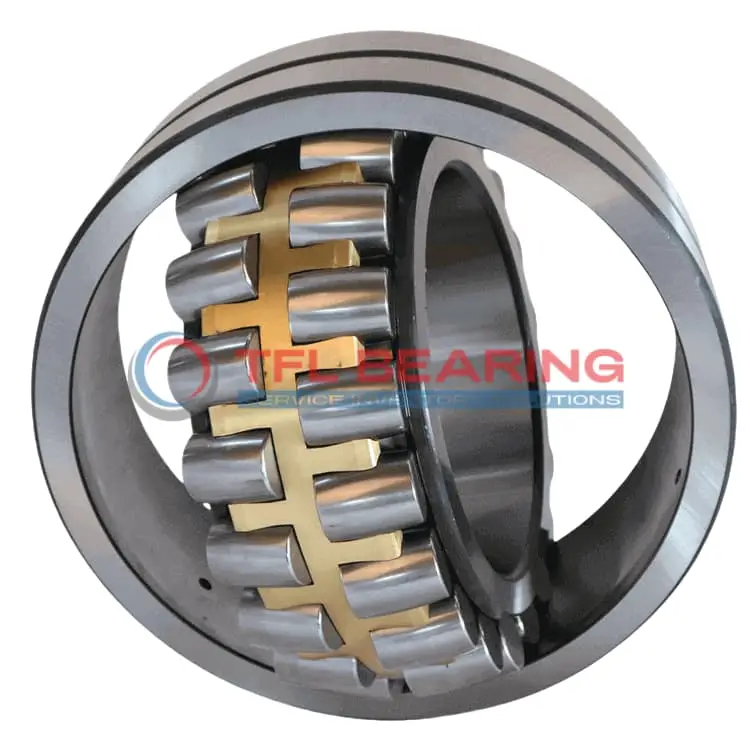

239/500 CA/C083VE589 Double Row Spherical Roller Bearing

239/500 CA/C083VE589 Double Row Spherical Roller Bearing

The 239/500 CA/C083VE589 is a double-row spherical roller bearing with a large 500mm bore and 670mm outer diameter, built from tough chrome steel. It handles combined loads up to 667008 lbf and runs smoothly at speeds up to 950 RPM.

Its brass cage and open design ensure durability, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C and requires regular lubrication.

With a C3 radial clearance and P5 precision, it suits heavy-duty applications like industrial gearboxes or large machinery. Weighing 130kg, it’s robust for high-load scenarios.

Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement. Ideal for mining or construction equipment where reliability is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 239/500 CA/C083VE589
  • Brand TFL
  • Interchangeable SKF
  • Size 500 x 670 x 128 mm
  • Bore Dia 500 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 670 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 128 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 561 mm
  • Shoulder/Recess Dia Of Outer Ring 622 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 667008 lbf
  • Static Radial Load 1348854 lbf
  • Max Speed 950 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 130 kg
  • Price （US$） US$7,041.22

Features

Performance Features of 239/500 CA/C083VE589 Bearing

239/500 CA/C083VE589 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 667008 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 950 rpm, it delivers reliable performance under demanding conditions.

239/500 CA/C083VE589 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, ensuring smooth operation in varying environments.

The lubrication groove and hole design in 239/500 CA/C083VE589 Bearing facilitate easy maintenance.
This feature helps extend service life and reduces downtime in industrial settings.

Application

Industrial Uses of 239/500 CA/C083VE589 Bearing
239/500 CA/C083VE589 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

In mining equipment, 239/500 CA/C083VE589 Bearing provides reliable performance in conveyors and separators, thanks to its robust chrome steel construction. Its C3 radial clearance allows for thermal expansion in high-temperature environments.

For wind turbines, 239/500 CA/C083VE589 Bearing supports the main shaft, where its spherical roller design compensates for misalignment. The lubrication groove simplifies maintenance, extending service intervals in remote installations.

Where Is 239/500 CA/C083VE589 Bearing Used?
239/500 CA/C083VE589 Bearing excels in paper mill machinery, particularly in rollers that require precise alignment and heavy load capacity. Its P5 radial run-out ensures consistent performance in high-speed applications.

In steel production, 239/500 CA/C083VE589 Bearing withstands extreme loads in rolling mills, while its temperature range suits both hot and cold processes. The open seal design allows for easy lubrication access.

Built for Heavy-Duty Use: 239/500 CA/C083VE589 Bearing
239/500 CA/C083VE589 Bearing is ideal for marine propulsion systems, where its combined load capacity handles thrust and radial forces. The brass cage resists corrosion in salty environments.

For construction equipment like cranes, 239/500 CA/C083VE589 Bearing’s high static load rating ensures stability under heavy lifts. Its cylindrical bore simplifies installation on large shafts.

Light-Duty vs Heavy-Duty: Best Uses for 239/500 CA/C083VE589 Bearing
239/500 CA/C083VE589 Bearing is suited for industrial fans, where its spherical rollers accommodate shaft deflection. The metric sizing fits standard European equipment designs.

In hydropower plants, 239/500 CA/C083VE589 Bearing supports turbine shafts, with its dynamic load rating ensuring long-term reliability. The chrome steel rollers resist wear in continuous operation.
