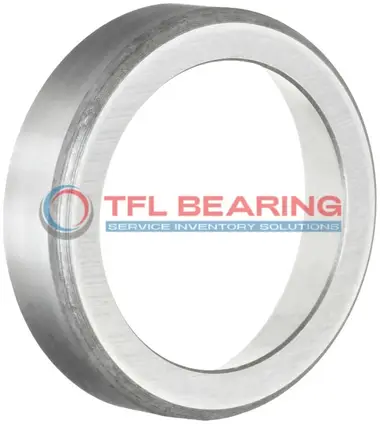

23720 Single Cups (Imperial)

23720 Single Cups (Imperial)

The 23720 is a single cup tapered roller bearing with an outer diameter of 2.875 inches and a width of 0.875 inches, made from sturdy chrome steel. It fits well with Timken bearings, making it a versatile replacement option.

Designed for standard applications, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general industrial use.

The cup features precise tolerances, with a frontface backing diameter of 2.72 inches and a backface backing diameter of 2.52 inches. Its simple design allows for easy installation and maintenance.

Ideal for machinery requiring tapered roller bearings, such as automotive or heavy equipment. Compliant with RoHS and REACH standards, it’s a safe and durable choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23720
  • Brand TFL
  • Interchangeable Timken
  • Size 2.52" x 2.875" x 0.875"
  • Outer Dia 2.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 2.72"
  • Cup Backface Backing Diameter 2.52"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 23790-23720
  • Cups Type Standard
  • Series 23700
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 23720 Bearing for Precision Tasks?

23720 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise dimensions (2.52″ x 2.875″ x 0.875″) ensure a perfect fit for tapered roller bearing applications.

The standard cup design simplifies installation, reducing downtime and maintenance efforts.
With an ABEC-1 rating, 23720 Bearing provides reliable performance for general industrial use.

Operating within a temperature range of -30° to 110°C, it adapts well to various environments.
Its compliance with RoHS and REACH standards ensures environmental and safety considerations are met.

Application

Industrial Uses of 23720 Bearing
The 23720 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered design handles radial and axial loads efficiently. Its chrome steel construction ensures durability in tough working conditions.

Where Is 23720 Bearing Used?
You’ll often find the 23720 Bearing in automotive applications like wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken designs. It’s a reliable choice for maintaining smooth rotation under heavy loads.

Built for Heavy-Duty Use: 23720 Bearing
This bearing excels in industrial gearboxes and conveyor systems, where its standard cup type simplifies installation and maintenance. The ABEC-1 rating makes it suitable for applications requiring consistent performance without extreme precision.

Automotive vs Industrial: Applications of 23720 Bearing
In automotive settings, the 23720 Bearing supports wheel assemblies, while in industrial contexts, it’s ideal for pulley systems and heavy-duty shafts. Its temperature range of -30° to 110°C ensures reliability in varied environments.

Perfect Fit for Machinery: 23720 Bearing
The 23720 Bearing’s tapered roller design makes it a go-to for machinery requiring load distribution, such as mining equipment and forklifts. Its chrome steel rings offer long-lasting wear resistance, even in high-stress scenarios.
