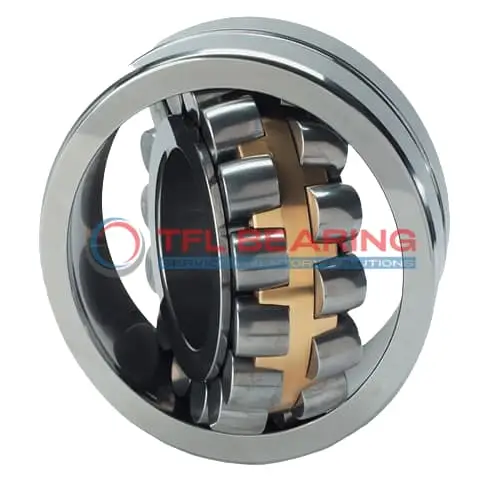

23292 CA/CO8 W33 VE554 E Double Row Spherical Roller Bearing

23292 CA/CO8 W33 VE554 E Double Row Spherical Roller Bearing

The 23292 CA/CO8 W33 VE554 E is a double-row spherical roller bearing with a large 460mm bore and 830mm outer diameter, built from tough chrome steel. It handles heavy combined loads up to 2013839 lbf and runs smoothly at speeds up to 560 RPM.

Its brass cage and spherical rollers provide reliable performance under misalignment, while the open design allows for easy lubrication. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a lubrication groove and holes for maintenance, this model is designed for long service life. It’s interchangeable with SKF bearings, ideal for heavy machinery like crushers or industrial gearboxes.

Weighing 695kg, it’s a robust choice for high-load applications. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23292 CA/CO8 W33 VE554 E
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 830 x 296 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 830 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 296 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 574 mm
  • Shoulder/Recess Dia Of Outer Ring 706 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2013839 lbf
  • Static Radial Load 3079883 lbf
  • Max Speed 560 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 695 kg
  • Price （US$） US$12,559.14

Features

Performance Features of 23292 CA/CO8 W33 VE554 E Bearing

23292 CA/CO8 W33 VE554 E Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 2013839 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller alignment, reducing friction and enhancing durability.
With a maximum speed of 560 rpm, it delivers reliable performance under demanding conditions.

23292 CA/CO8 W33 VE554 E Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical roller design accommodates misalignment while maintaining stability.

The lubrication groove and hole design in 23292 CA/CO8 W33 VE554 E Bearing ensure proper oil distribution.
This feature extends service life and reduces maintenance requirements in continuous operation.

Application

Key Fields for 23292 CA/CO8 W33 VE554 E Bearing
In heavy machinery like mining equipment, 23292 CA/CO8 W33 VE554 E Bearing handles combined loads effortlessly, thanks to its double-row spherical roller design. The brass cage ensures smooth operation even under extreme conditions.

Where Is 23292 CA/CO8 W33 VE554 E Bearing Used?
You’ll often spot 23292 CA/CO8 W33 VE554 E Bearing in large industrial fans, where its high dynamic radial load capacity keeps things running smoothly. The lubrication groove makes maintenance a breeze.

Built for Heavy-Duty Use: 23292 CA/CO8 W33 VE554 E Bearing
This bearing shines in paper mill machinery, where its chrome steel construction withstands constant stress. The wide temperature range means it performs reliably in both hot and cold environments.

Automotive vs Aerospace: Applications of 23292 CA/CO8 W33 VE554 E Bearing
While too large for most cars, 23292 CA/CO8 W33 VE554 E Bearing is ideal for aerospace ground support equipment. Its high static radial load capacity ensures stability under heavy loads.

Industrial Uses of 23292 CA/CO8 W33 VE554 E Bearing
In steel plants, 23292 CA/CO8 W33 VE554 E Bearing supports rolling mills, where its spherical rollers accommodate misalignment. The metric sizing fits seamlessly into European machinery designs.
