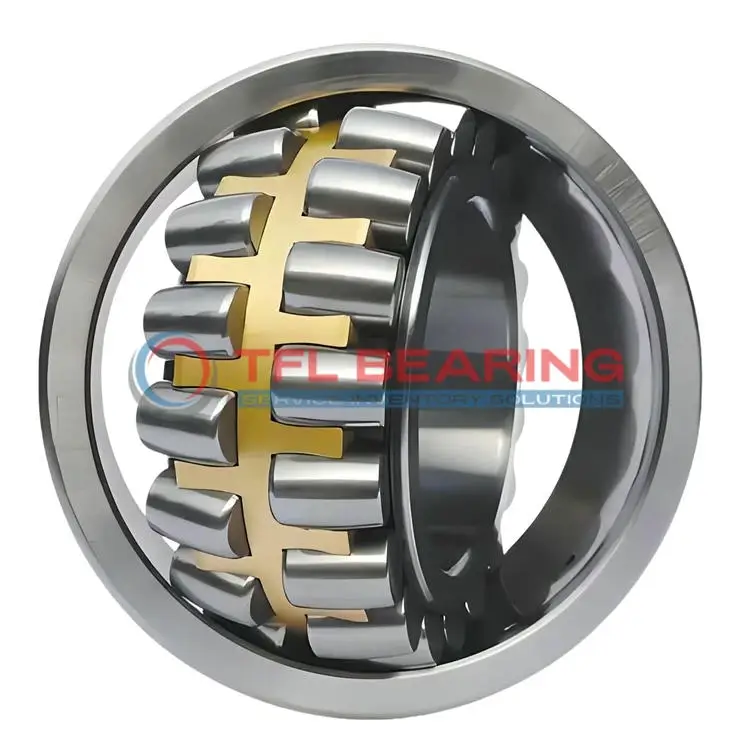

23284 CAL CY C02 W507 Double Row Spherical Roller Bearing

23284 CAL CY C02 W507 Double Row Spherical Roller Bearing

The 23284 CAL CY C02 W507 is a double-row spherical roller bearing with a large 420mm bore and 760mm outer diameter, built from tough chrome steel. It handles combined loads up to 1725858 lbf and runs smoothly at speeds up to 630 RPM.

Its brass cage and open design ensure durability, while the spherical rollers allow for slight misalignment. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or industrial gearboxes where high radial loads are present.

Weighing 535kg, it’s a robust unit designed for long-term performance. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Lubrication is required, with a 12mm hole and 22.3mm groove for easy maintenance. The cylindrical bore and standard radial clearance ensure straightforward installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23284 CAL CY C02 W507
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 760 x 272 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 760 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 272 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 526 mm
  • Shoulder/Recess Dia Of Outer Ring 649 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1725858 lbf
  • Static Radial Load 2607784 lbf
  • Max Speed 630 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 535 kg
  • Price （US$） US$8,701.74

Features

Performance Features of 23284 CAL CY C02 W507 Bearing

23284 CAL CY C02 W507 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 1,725,858 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller alignment, reducing friction and enhancing durability.
With a maximum speed of 630 rpm, it maintains reliable performance under high stress.

23284 CAL CY C02 W507 Bearing operates in temperatures from -30° to 200°C, adapting to various working conditions.
Its double-row spherical design accommodates misalignment, ensuring consistent operation.

The lubrication groove and hole design in 23284 CAL CY C02 W507 Bearing simplifies maintenance.
This feature helps extend service life while reducing downtime for re-lubrication.

Application

Key Fields for 23284 CAL CY C02 W507 Bearing
This bearing is commonly used in heavy industrial machinery, such as mining equipment and large gearboxes, where its double-row design handles significant radial and axial loads. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 23284 CAL CY C02 W507 Bearing supports the main shaft, with its spherical roller design accommodating misalignment. The chrome steel construction provides durability in harsh outdoor conditions.

For steel mill machinery, this bearing’s large size and high load capacity make it ideal for rolling mills. Its lubrication groove design simplifies maintenance in continuous operation environments.

The 23284 CAL CY C02 W507 Bearing also finds use in marine propulsion systems, where its temperature range suits both cold and warm water operations. The metric dimensions ensure compatibility with international vessel designs.
