23284 CAK/C08W507 Double Row Spherical Roller Bearing

23284 CAK/C08W507 Double Row Spherical Roller Bearing

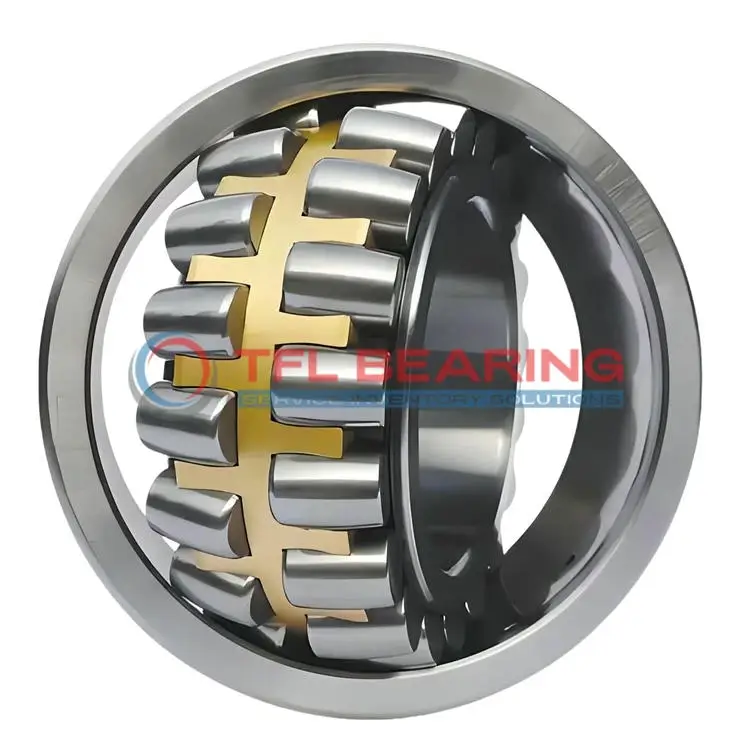

The 23284 CAK/C08W507 is a double-row spherical roller bearing with a large 420mm bore and 760mm outer diameter, built from tough chrome steel. It handles heavy combined loads, with a dynamic radial load capacity of 1725858 lbf and a static capacity of 2607784 lbf.

Its spherical roller design allows for smooth rotation even under misalignment, while the brass cage ensures durability. The bearing operates at speeds up to 630 rpm and can withstand temperatures from -30°C to 200°C.

This model features a tapered bore (1:12 ratio) for secure fitting and includes lubrication grooves for easy maintenance. It meets P5 radial run-out standards for precision performance.

Ideal for heavy machinery like crushers or large gearboxes where high load capacity and alignment flexibility are needed. Compliant with RoHS and REACH regulations. Weighing 535kg, it’s built for robust industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23284 CAK/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 760 x 272 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 760 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 272 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 526 mm
  • Shoulder/Recess Dia Of Outer Ring 649 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1725858 lbf
  • Static Radial Load 2607784 lbf
  • Max Speed 630 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 535 kg
  • Price （US$） US$11,313.15

Features

How Does 23284 CAK/C08W507 Bearing Handle Combined Loads?

23284 CAK/C08W507 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 1,725,858 lbf, making it suitable for heavy-duty industrial applications.
The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 630 rpm, it maintains reliable operation in demanding conditions.

What Ensures Smooth Operation in 23284 CAK/C08W507 Bearing?

23284 CAK/C08W507 Bearing features a tapered bore design for secure fitting and alignment.
The spherical roller design accommodates misalignment, ensuring consistent performance even under stress.
Its lubrication groove and hole facilitate efficient grease distribution, reducing wear.
Operating in temperatures from -30° to 200°C, it adapts to various industrial environments.

Why Choose 23284 CAK/C08W507 Bearing for Heavy-Duty Applications?

23284 CAK/C08W507 Bearing’s double-row construction provides superior load distribution and stability.
The chrome steel rollers and rings resist wear, extending the bearing’s service life.
With a static radial load capacity of 2,607,784 lbf, it handles extreme pressures effortlessly.
Its P5 radial run-out precision ensures smooth and reliable operation.

Engineered for Reliability: 23284 CAK/C08W507 Bearing

23284 CAK/C08W507 Bearing’s brass cage minimises friction, promoting efficient roller movement.
The tapered bore design simplifies installation and enhances alignment accuracy.
Its wide temperature range makes it versatile for both hot and cold environments.
Weighing 535 kg, it is designed for stability in large-scale machinery.

Material Composition of 23284 CAK/C08W507 Bearing

23284 CAK/C08W507 Bearing uses chrome steel for rings and rollers, ensuring strength and durability.
The brass cage provides smooth operation and reduces maintenance needs.
Its construction meets RoHS and REACH compliance, ensuring environmental safety.
The bearing’s design focuses on longevity and consistent performance under stress.

Application

Industrial Uses of 23284 CAK/C08W507 Bearing
23284 CAK/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under demanding conditions.

Where Is 23284 CAK/C08W507 Bearing Used?
In mining equipment, 23284 CAK/C08W507 Bearing supports large rotating components, thanks to its high dynamic radial load capacity. The tapered bore design simplifies installation and maintenance in rugged environments.

Built for Heavy-Duty Use: 23284 CAK/C08W507 Bearing
23284 CAK/C08W507 Bearing excels in paper mills and steel plants, where its chrome steel construction withstands high temperatures and continuous operation. The open seal type allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 23284 CAK/C08W507 Bearing
While 23284 CAK/C08W507 Bearing isn’t typical in aerospace, it’s ideal for large automotive applications like wind turbines, where combined loads are common. Its metric sizing ensures compatibility with global machinery standards.

Practical Applications of 23284 CAK/C08W507 Bearing
23284 CAK/C08W507 Bearing is a reliable choice for power generation equipment, such as hydroelectric turbines, due to its high static radial load rating. The lubrication groove design ensures consistent performance in long-duty cycles.
