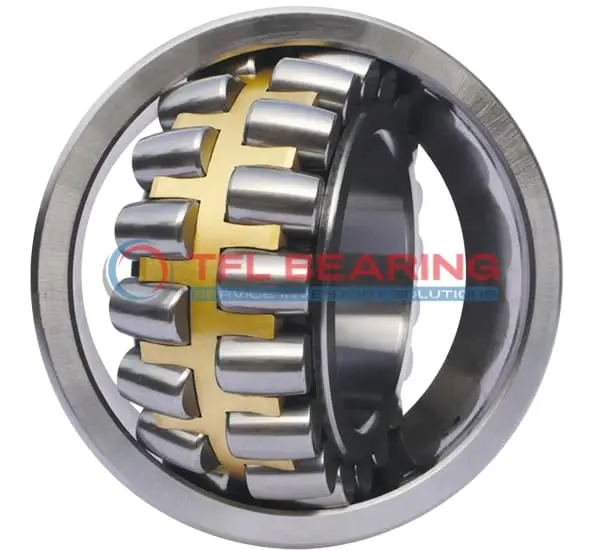

23252 CACK/C083W507 Double Row Spherical Roller Bearing

23252 CACK/C083W507 Double Row Spherical Roller Bearing

The 23252 CACK/C083W507 is a double-row spherical roller bearing with a 260mm bore and 480mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 763226 lbf and runs smoothly at speeds up to 1200 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) simplifies installation. The bearing operates in temperatures from -30°C to 200°C and requires regular lubrication.

With a C3 radial clearance and P5 precision, it suits heavy-duty applications like industrial gearboxes or mining equipment. Interchangeable with SKF models, it offers a reliable replacement option.

Weighing 140kg, this robust bearing is designed for long-term performance in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23252 CACK/C083W507
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 480 x 174 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance +0.052mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 174 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 329 mm
  • Shoulder/Recess Dia Of Outer Ring 408 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 763226 lbf
  • Static Radial Load 1067842 lbf
  • Max Speed 1200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 140 kg
  • Price （US$） US$2,587.00

Features

How Is 23252 CACK/C083W507 Bearing Engineered for Reliability?

23252 CACK/C083W507 Bearing features a double row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel rings and rollers provide excellent strength, supporting dynamic radial loads up to 763226 lbf.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1200 rpm, it delivers consistent performance in demanding conditions.

23252 CACK/C083W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reliable operation.

Application

Industrial Uses of 23252 CACK/C083W507 Bearing
23252 CACK/C083W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

What Makes 23252 CACK/C083W507 Bearing a Preferred Choice?
In mining equipment, 23252 CACK/C083W507 Bearing’s tapered bore allows for secure mounting on shafts, reducing slippage during operation. Its high dynamic load capacity makes it reliable for continuous use in harsh conditions.

Built for Heavy-Duty Use: 23252 CACK/C083W507 Bearing
For wind turbines, 23252 CACK/C083W507 Bearing’s spherical roller design compensates for misalignment, ensuring consistent performance. The chrome steel construction provides excellent durability in outdoor environments.

Automotive vs Aerospace: Applications of 23252 CACK/C083W507 Bearing
In large trucks, 23252 CACK/C083W507 Bearing supports drivetrain components, while in aerospace, its high-temperature tolerance suits auxiliary systems. The metric sizing ensures compatibility across industries.

Practical Applications of 23252 CACK/C083W507 Bearing
23252 CACK/C083W507 Bearing is ideal for paper mills, where its C3 radial clearance accommodates thermal expansion. The lubrication groove design simplifies maintenance in dusty environments.
