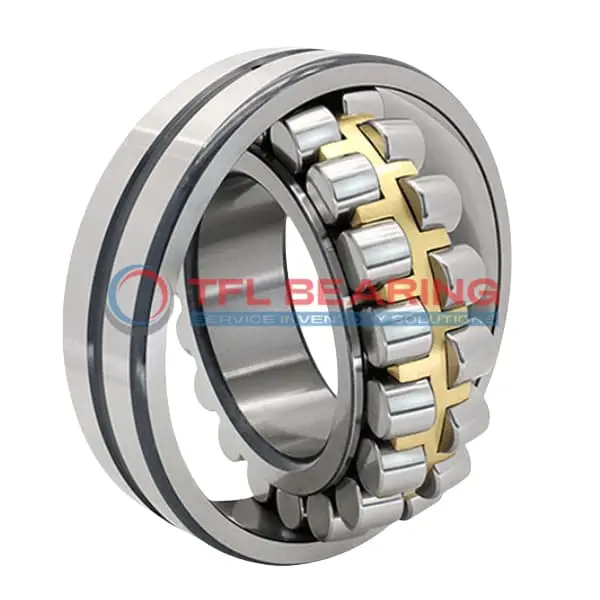

23248 CAC/C2W33 Double Row Spherical Roller Bearing

23248 CAC/C2W33 Double Row Spherical Roller Bearing

The 23248 CAC/C2W33 is a double row spherical roller bearing with a 240mm bore and 440mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 62924 lbf and runs smoothly at speeds up to 1300 RPM.

Its brass cage and open design ensure durability, while the C2 radial clearance allows for thermal expansion. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

With lubrication grooves and holes, maintenance is straightforward. Ideal for heavy machinery like crushers or industrial fans where high radial loads are common.

Weighing 105kg, it’s robust yet designed for efficient performance. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23248 CAC/C2W33
  • Brand TFL
  • Interchangeable SKF
  • Size 240 x 440 x 160 mm
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 160 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 301 mm
  • Shoulder/Recess Dia Of Outer Ring 374 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 62924 lbf
  • Static Radial Load 854274 lbf
  • Max Speed 1300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 105 kg
  • Price （US$） US$1,949.68

Features

How Is 23248 CAC/C2W33 Bearing Engineered for Reliability?

23248 CAC/C2W33 Bearing features a double-row spherical roller design, ideal for handling combined radial and thrust loads.
Its chrome steel rings and rollers provide high resistance to wear, ensuring long-term durability.

The brass cage maintains roller alignment, reducing friction and enhancing performance under heavy loads.
With a dynamic radial load capacity of 62924 lbf, it excels in demanding industrial applications.

23248 CAC/C2W33 Bearing operates smoothly in temperatures ranging from -30° to 200°C.
Its C2 radial clearance ensures optimal performance, even under varying thermal conditions.

The lubrication groove and holes in 23248 CAC/C2W33 Bearing simplify maintenance.
This design ensures consistent lubrication, extending the bearing’s service life.

Application

Industrial Uses of 23248 CAC/C2W33 Bearing
23248 CAC/C2W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The brass cage ensures smooth operation even under high stress.

What Makes 23248 CAC/C2W33 Bearing a Preferred Choice?
In mining equipment, 23248 CAC/C2W33 Bearing’s large bore and high load capacity make it ideal for conveyor systems and pulleys. Its C2 radial clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: 23248 CAC/C2W33 Bearing
For wind turbines, 23248 CAC/C2W33 Bearing provides reliable performance in gearboxes, thanks to its spherical roller design. The chrome steel construction ensures durability in varying weather conditions.

Automotive vs Aerospace: Applications of 23248 CAC/C2W33 Bearing
In large trucks, 23248 CAC/C2W33 Bearing supports axles and transmissions, while in industrial fans, it maintains stability at high speeds. Its metric sizing fits standard European machinery.

Essential Roles of 23248 CAC/C2W33 Bearing
23248 CAC/C2W33 Bearing is vital in paper mills, where it handles heavy radial loads in rollers. The open design simplifies lubrication, extending service life in continuous operations.
