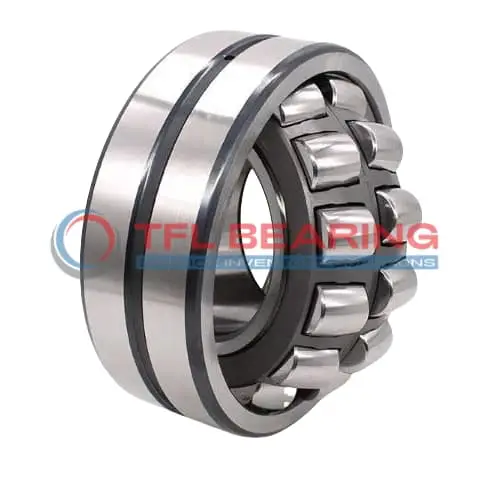

23234 CC/C3W513 Double Row Spherical Roller Bearing

23234 CC/C3W513 Double Row Spherical Roller Bearing

The 23234 CC/C3W513 is a double-row spherical roller bearing with a 170mm bore and 310mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 330919 lbf and operates smoothly at speeds up to 2000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy loads. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like industrial gearboxes or heavy machinery where high radial and axial loads are present.

Weighing 36kg, it’s built for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23234 CC/C3W513
  • Brand TFL
  • Interchangeable SKF
  • Size 170 x 310 x 110 mm
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 310 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 110 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 200 mm
  • Shoulder/Recess Dia Of Outer Ring 261 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 330919 lbf
  • Static Radial Load 433881 lbf
  • Max Speed 2000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 36 kg

Features

Performance Features of 23234 CC/C3W513 Bearing

23234 CC/C3W513 Bearing is built with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity of 330919 lbf makes it suitable for heavy-duty industrial applications.
The double-row spherical roller design allows for slight misalignment, maintaining smooth operation.

How Is 23234 CC/C3W513 Bearing Engineered for Reliability?

23234 CC/C3W513 Bearing features a steel cage that keeps the rollers aligned, reducing friction and wear.
With a maximum speed of 2000 rpm, it delivers consistent performance in high-speed environments.
The C3 radial clearance ensures optimal operation under varying thermal conditions.

Built for Durability: 23234 CC/C3W513 Bearing

23234 CC/C3W513 Bearing’s chrome steel construction resists wear, extending its service life in demanding settings.
The lubrication groove and holes facilitate easy maintenance, ensuring long-term reliability.
Its temperature range of -30° to 200°C makes it adaptable to extreme working conditions.

Steel vs Ceramic Bearings: Strengths of 23234 CC/C3W513 Bearing

23234 CC/C3W513 Bearing’s chrome steel rollers provide excellent load-bearing capacity compared to ceramic alternatives.
The spherical roller design accommodates misalignment, reducing stress on adjacent components.
With a static radial load of 433881 lbf, it excels in applications requiring high load resistance.

Application

Industrial Uses of 23234 CC/C3W513 Bearing
23234 CC/C3W513 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rough conditions.

Where Is 23234 CC/C3W513 Bearing Used?
You’ll often find 23234 CC/C3W513 Bearing in mining equipment, where its high dynamic radial load capacity keeps conveyors and excavators running reliably. The C3 clearance allows for thermal expansion, making it ideal for high-temperature environments.

Built for Heavy-Duty Use: 23234 CC/C3W513 Bearing
23234 CC/C3W513 Bearing excels in paper mills, supporting large rollers that endure constant stress. Its chrome steel rollers and steel cage provide long-lasting performance, even in dusty or humid settings.

Automotive vs Aerospace: Applications of 23234 CC/C3W513 Bearing
In automotive applications, 23234 CC/C3W513 Bearing is used in large trucks for axle support, while in aerospace, it’s found in ground-handling equipment. The metric sizing ensures compatibility across industries.

Key Fields for 23234 CC/C3W513 Bearing
23234 CC/C3W513 Bearing is a go-to for wind turbines, where its ability to handle radial and axial loads keeps blades rotating smoothly. The open design simplifies lubrication, reducing maintenance downtime.
