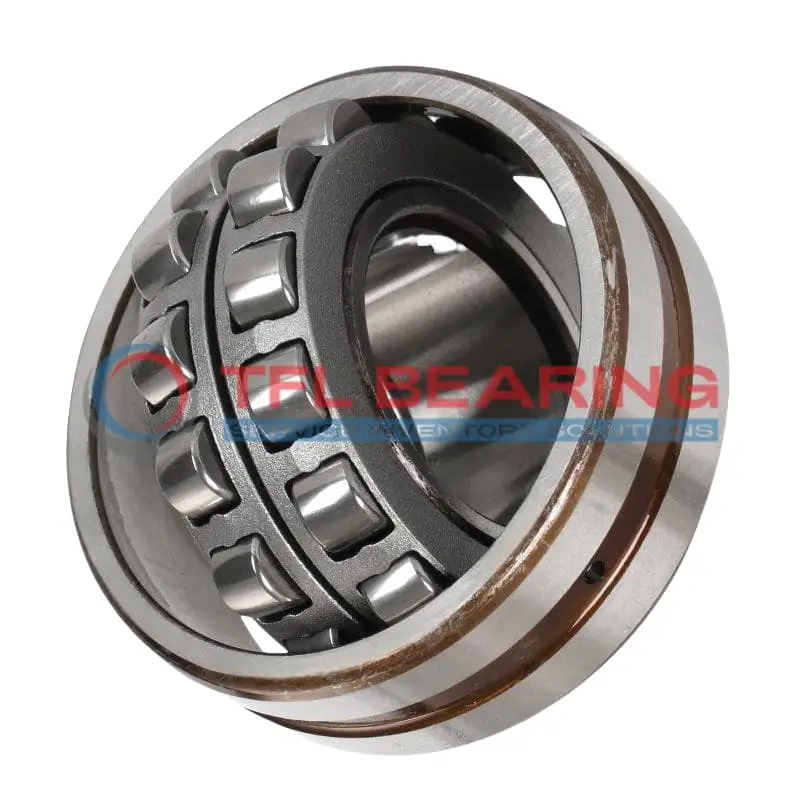

23230 CCYC3W33 Double Row Spherical Roller Bearing

The 23230 CCYC3W33 is a double-row spherical roller bearing with a 150mm bore and 270mm outer diameter, built from tough chrome steel for durability. It handles combined loads up to 253809 lbf and runs smoothly at speeds up to 2200 RPM.

Its brass cage and spherical rollers ensure reliable performance under heavy loads, while the open design allows for easy lubrication. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

With a C3 radial clearance, it accommodates slight misalignments, ideal for industrial machinery like gearboxes or conveyors. Weighing 23.5kg, it’s robust yet manageable for its size.

Compliant with RoHS and REACH standards, this model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for applications requiring high load capacity and durability.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 23230 CCYC3W33
Brand TFL
Interchangeable SKF
Size 150 x 270 x 96 mm
Bore Dia 150 mm
Bore Dia Tolerance -0.025mm to 0
Outer Dia 270 mm
Outer Dia Tolerance -0.035mm to 0
Width 96 mm
Width Tolerance -0.08mm to 0
Shoulder Dia Of Inner Ring 175 mm
Shoulder/Recess Dia Of Outer Ring 228 mm
Width Of Lubrication Groove 11.1 mm
Diameter Of Lubrication Hole 6 mm
Chamfer Dimension min.3 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 253809 lbf
Static Radial Load 328221 lbf
Max Speed 2200 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance C3
RoHs Compliant
REACH Compliant
Weight 23.5 kg
Price （US$） US$387.54

Features

Performance Features of 23230 CCYC3W33 Bearing

23230 CCYC3W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 253809 lbf, ensuring robust performance in heavy-duty applications.
The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 2200 rpm, it delivers reliable operation under demanding conditions.

How Does 23230 CCYC3W33 Bearing Resist Wear?

23230 CCYC3W33 Bearing’s chrome steel construction provides excellent wear resistance, even under high stress.
The spherical roller design distributes loads evenly, minimising surface fatigue.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
The brass cage further reduces wear by keeping rollers properly spaced and aligned.

Engineered for Precision: 23230 CCYC3W33 Bearing

23230 CCYC3W33 Bearing features a double-row spherical roller design for precise load distribution.
The cylindrical bore ensures easy installation and secure fitment on shafts.
With a temperature range of -30° to 200°C, it performs reliably in extreme environments.
The lubrication groove and holes facilitate proper grease distribution, enhancing longevity.

Why Choose 23230 CCYC3W33 Bearing for High-Temperature Applications?

23230 CCYC3W33 Bearing operates efficiently in temperatures up to 200°C, thanks to its chrome steel components.
The brass cage maintains structural integrity under thermal stress, preventing deformation.
Its C3 clearance accommodates expansion, ensuring smooth operation in heat-intensive settings.
The open design allows for effective lubrication, reducing friction and heat buildup.

Structural Advantages of 23230 CCYC3W33 Bearing

23230 CCYC3W33 Bearing’s double-row construction provides superior load-carrying capacity.
The spherical rollers self-align, compensating for minor misalignments and shaft deflections.
With a static radial load of 328221 lbf, it handles heavy loads with ease.
The precision-ground surfaces ensure smooth rotation and reduced vibration.

Application

Industrial Uses of 23230 CCYC3W33 Bearing
23230 CCYC3W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly. The brass cage ensures smooth operation even under demanding conditions.

What Makes 23230 CCYC3W33 Bearing a Preferred Choice?
In mining equipment, 23230 CCYC3W33 Bearing’s spherical roller design compensates for misalignment, reducing wear and tear. Its high dynamic load capacity makes it ideal for continuous operation in harsh environments.

Built for Heavy-Duty Use: 23230 CCYC3W33 Bearing
For wind turbines, 23230 CCYC3W33 Bearing’s robust construction and C3 radial clearance accommodate thermal expansion. The chrome steel rollers provide long-lasting performance in variable weather conditions.

Automotive vs Aerospace: Applications of 23230 CCYC3W33 Bearing
In large trucks, 23230 CCYC3W33 Bearing supports drivetrain components, while in industrial fans, its high-speed capability ensures reliable airflow. The metric sizing fits seamlessly into European and Asian machinery.

Perfect Fit for Automation: 23230 CCYC3W33 Bearing
23230 CCYC3W33 Bearing is often found in conveyor systems, where its self-aligning feature reduces maintenance downtime. The open design allows for easy lubrication, extending service life in high-use scenarios.
