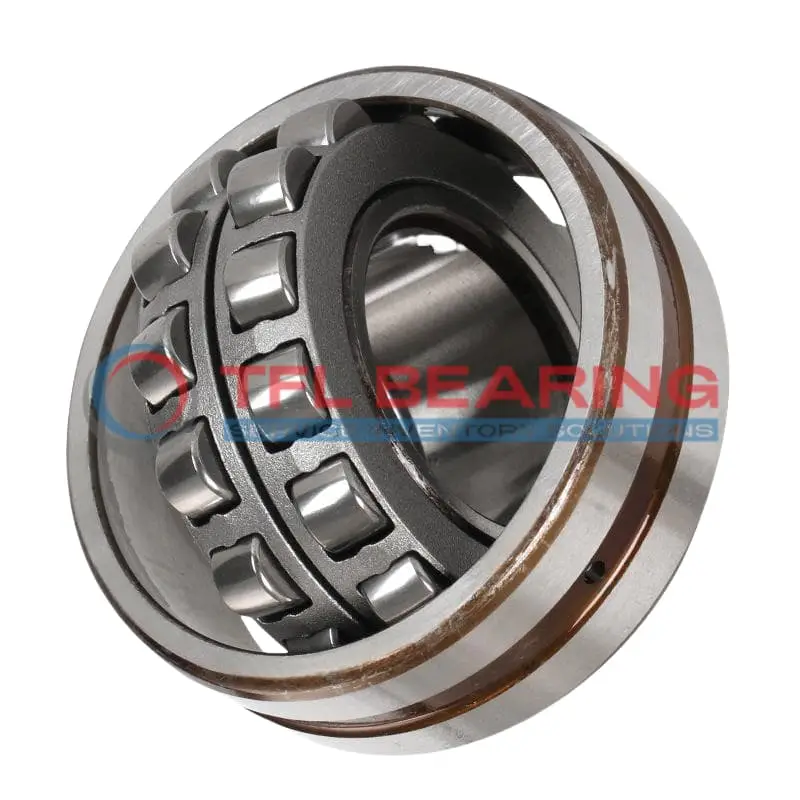

23230 CC/C3W513 Double Row Spherical Roller Bearing

23230 CC/C3W513 Double Row Spherical Roller Bearing

The 23230 CC/C3W513 is a double-row spherical roller bearing with a 150mm bore and 270mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 253809 lbf and operates smoothly at speeds up to 2200 RPM.

Its open design and C3 radial clearance allow for easy lubrication, while the steel cage ensures durability under heavy loads. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 23.5kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23230 CC/C3W513
  • Brand TFL
  • Interchangeable SKF
  • Size 150 x 270 x 96 mm
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 270 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 96 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 175 mm
  • Shoulder/Recess Dia Of Outer Ring 228 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 253809 lbf
  • Static Radial Load 328221 lbf
  • Max Speed 2200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 23.5 kg

Features

Performance Features of 23230 CC/C3W513 Bearing

23230 CC/C3W513 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 253809 lbf, making it suitable for heavy-duty applications.
The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 2200 rpm, it delivers reliable performance in demanding environments.

How Is 23230 CC/C3W513 Bearing Engineered for Reliability?

23230 CC/C3W513 Bearing features a steel cage that maintains roller alignment, reducing wear and extending lifespan.
The C3 radial clearance allows for thermal expansion, ensuring stable operation in varying temperatures.
Its lubrication groove and holes facilitate easy maintenance, keeping the bearing running smoothly.
Designed for temperatures from -30° to 200°C, it performs well in both hot and cold conditions.

Built for Durability: 23230 CC/C3W513 Bearing

23230 CC/C3W513 Bearing’s chrome steel construction provides excellent resistance to wear and fatigue.
The spherical roller design accommodates misalignment, reducing stress on the bearing components.
With a static radial load capacity of 328221 lbf, it handles heavy loads with ease.
Its robust design ensures long service life, even in harsh industrial environments.

Steel vs Ceramic Bearings: Strengths of 23230 CC/C3W513 Bearing

23230 CC/C3W513 Bearing uses chrome steel for its rings and rollers, offering superior strength and durability.
The steel cage provides reliable support, ensuring consistent performance under heavy loads.
Unlike ceramic bearings, it is more cost-effective while still delivering high load capacity.
Its design is optimised for industrial applications where reliability and longevity are key.

Application

Industrial Uses of 23230 CC/C3W513 Bearing
23230 CC/C3W513 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The spherical roller construction ensures smooth operation even with slight misalignments.

Where Is 23230 CC/C3W513 Bearing Used?
In mining equipment, 23230 CC/C3W513 Bearing provides reliable performance under extreme conditions, thanks to its robust chrome steel construction. Its high dynamic load capacity makes it suitable for conveyor systems and gearboxes.

Built for Heavy-Duty Use: 23230 CC/C3W513 Bearing
23230 CC/C3W513 Bearing excels in paper mill machinery, where its C3 radial clearance accommodates thermal expansion. The steel cage enhances durability, making it a long-lasting choice for high-speed applications.

Automotive vs Aerospace: Applications of 23230 CC/C3W513 Bearing
In automotive applications, 23230 CC/C3W513 Bearing supports heavy axles and drivetrains, ensuring stability under load. For aerospace, its temperature range suits auxiliary systems requiring consistent performance.

Practical Applications of 23230 CC/C3W513 Bearing
23230 CC/C3W513 Bearing is ideal for wind turbines, where its spherical rollers manage variable loads and misalignments. The open design simplifies lubrication, extending service intervals in remote installations.
