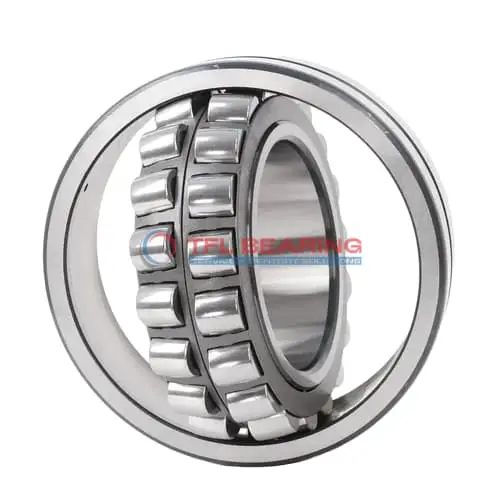

23226 CKY W33 Double Row Spherical Roller Bearing

23226 CKY W33 Double Row Spherical Roller Bearing

The 23226 CKY W33 is a double-row spherical roller bearing with a 130mm bore and 230mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 185692 lbf and operates smoothly at speeds up to 2600 RPM.

Its brass cage and spherical rollers ensure durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a tapered bore (1:12 ratio), it offers secure fitting, and the lubrication groove simplifies maintenance. Ideal for heavy-duty applications like industrial gearboxes or mining equipment.

Weighing 14kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23226 CKY W33
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 230 x 80 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance +0.04mm to 0
  • Outer Dia 230 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 151 mm
  • Shoulder/Recess Dia Of Outer Ring 196 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 185692 lbf
  • Static Radial Load 238297 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 14 kg
  • Price （US$） US$247.14

Features

Performance Features of 23226 CKY W33 Bearing

23226 CKY W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 185692 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller alignment, reducing friction and extending operational life.
With a maximum speed of 2600 rpm, it delivers reliable performance under demanding conditions.

23226 CKY W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reducing maintenance needs.

Application

Industrial Uses of 23226 CKY W33 Bearing
23226 CKY W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease. The brass cage ensures smooth operation even under high stress and vibration.

What Makes 23226 CKY W33 Bearing a Preferred Choice?
In mining equipment, 23226 CKY W33 Bearing’s tapered bore provides a secure fit, reducing slippage during intense operations. Its high dynamic radial load capacity makes it reliable for continuous use in harsh environments.

Built for Heavy-Duty Use: 23226 CKY W33 Bearing
For wind turbines, 23226 CKY W33 Bearing’s spherical rollers compensate for misalignment, ensuring consistent performance. The lubrication groove design extends service life by maintaining optimal oil flow.

Automotive vs Aerospace: Applications of 23226 CKY W33 Bearing
In large trucks, 23226 CKY W33 Bearing supports axles and gearboxes, handling both radial and thrust loads. Its temperature range also suits aerospace applications where thermal stability is key.

Perfect Fit for Automation: 23226 CKY W33 Bearing
23226 CKY W33 Bearing works well in robotic arms, offering precision and durability for repetitive movements. The chrome steel construction resists wear, making it ideal for high-cycle automation tasks.
