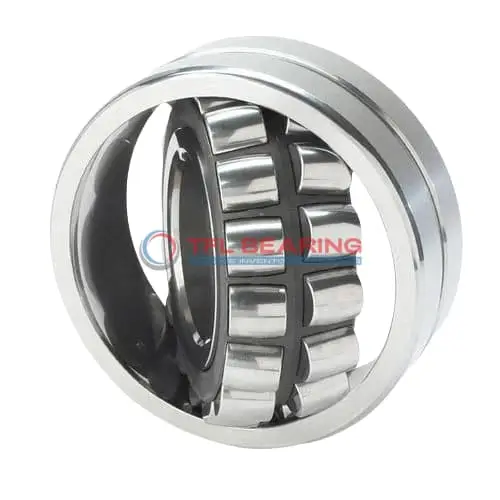

23224 CY C3 W33 Double Row Spherical Roller Bearing

23224 CY C3 W33 Double Row Spherical Roller Bearing

The 23224 CY C3 W33 is a double-row spherical roller bearing with a 120mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 16456 lbf and operates smoothly at speeds up to 2800 RPM.

Its brass cage and open design ensure durability and easy lubrication, while the spherical rollers accommodate misalignment. The bearing performs reliably in temperatures from -30°C to 200°C.

With a C3 radial clearance, it’s suited for applications with thermal expansion, like heavy machinery or industrial gearboxes. The lubrication groove and holes simplify maintenance.

Weighing 12kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23224 CY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 215 x 76 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 76 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 141 mm
  • Shoulder/Recess Dia Of Outer Ring 182 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 16456 lbf
  • Static Radial Load 209072 lbf
  • Max Speed 2800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 12 kg
  • Price （US$） US$214.20

Features

Performance Features of 23224 CY C3 W33 Bearing

23224 CY C3 W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 16456 lbf, ensuring robust performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 2800 rpm, it delivers reliable operation under demanding conditions.

23224 CY C3 W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments.

The lubrication groove and holes in 23224 CY C3 W33 Bearing ensure consistent oil distribution.
This design minimises wear and extends the bearing’s service life, reducing maintenance needs.

23224 CY C3 W33 Bearing’s double-row spherical rollers accommodate misalignment and heavy loads.
Its cylindrical bore simplifies installation, saving time and effort during assembly.

Application

Industrial Uses of 23224 CY C3 W33 Bearing
23224 CY C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

What Makes 23224 CY C3 W33 Bearing a Preferred Choice?
In mining equipment, 23224 CY C3 W33 Bearing’s robust construction and high load capacity make it ideal for conveyor systems and gearboxes. Its C3 radial clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: 23224 CY C3 W33 Bearing
For wind turbines, 23224 CY C3 W33 Bearing provides reliable performance in rotor shafts, thanks to its spherical roller design. The chrome steel rollers and rings offer excellent durability in harsh weather conditions.

Automotive vs Aerospace: Applications of 23224 CY C3 W33 Bearing
In automotive applications, 23224 CY C3 W33 Bearing supports heavy axles and transmissions, while in aerospace, it’s used in landing gear systems. The metric sizing ensures compatibility across various industries.

Essential Roles of 23224 CY C3 W33 Bearing
23224 CY C3 W33 Bearing is vital in paper mills, where it handles high speeds and loads in drying cylinders. The lubrication groove and hole design ensure consistent performance with minimal maintenance.
