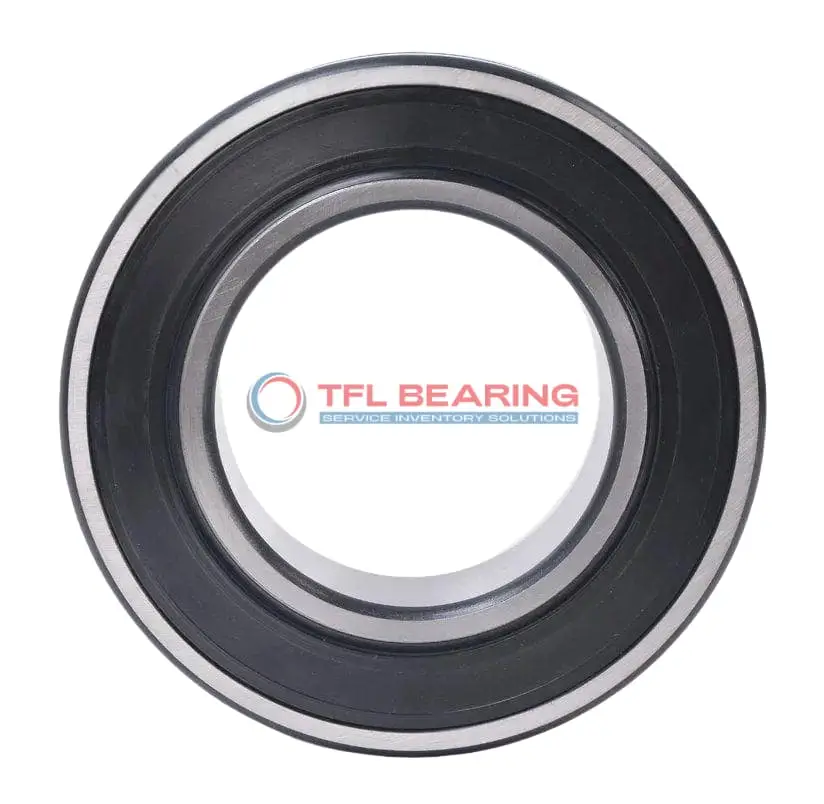

23220-2CS5/W77GEM9 Double Row Spherical Roller Bearing

23220-2CS5/W77GEM9 Double Row Spherical Roller Bearing

The 23220-2CS5/W77GEM9 is a double-row spherical roller bearing with a 100mm bore and 180mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 11218 lbf and operates smoothly at speeds up to 1700 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures reliable performance. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 6.85kg, it’s built to last with a radial clearance of CN. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23220-2CS5/W77GEM9
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 180 x 60.3 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60.3 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 114 mm
  • Shoulder/Recess Dia Of Outer Ring 159 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11218 lbf
  • Static Radial Load 134885 lbf
  • Max Speed 1700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.85 kg

Features

How Is 23220-2CS5/W77GEM9 Bearing Engineered for Reliability?

23220-2CS5/W77GEM9 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding conditions.

The double-sealed design of 23220-2CS5/W77GEM9 Bearing protects against contaminants, extending its service life.
With a dynamic radial load capacity of 11218 lbf, it performs reliably under heavy loads.

23220-2CS5/W77GEM9 Bearing operates smoothly within a temperature range of -30° to 200 °C, suitable for various environments.
Its precision engineering ensures consistent performance at speeds up to 1700 rpm.

The lubrication groove and holes in 23220-2CS5/W77GEM9 Bearing facilitate efficient maintenance, reducing downtime.
This design enhances longevity while maintaining optimal performance in industrial applications.

Application

Industrial Uses of 23220-2CS5/W77GEM9 Bearing
23220-2CS5/W77GEM9 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction helps accommodate misalignment, making it ideal for rugged environments.

In automotive applications, 23220-2CS5/W77GEM9 Bearing supports components such as truck axles and transmissions, ensuring smooth operation under heavy loads. Its double-seal design also protects against contaminants, extending service life.

For industrial fans and blowers, 23220-2CS5/W77GEM9 Bearing’s high-speed capability and temperature resistance make it a reliable choice. The chrome steel rollers provide durability, even in demanding conditions.

Where Is 23220-2CS5/W77GEM9 Bearing Used?
23220-2CS5/W77GEM9 Bearing is often found in mining equipment, where its robust construction withstands extreme loads and vibrations. The steel cage ensures stability, even in high-stress scenarios.

In construction machinery, 23220-2CS5/W77GEM9 Bearing supports components like conveyor belts and mixers, thanks to its combined load capacity. The lubrication groove design also simplifies maintenance.

Built for Heavy-Duty Use: 23220-2CS5/W77GEM9 Bearing
23220-2CS5/W77GEM9 Bearing excels in paper mill machinery, where its double-seal design prevents dust ingress. The spherical rollers adapt to slight misalignments, reducing wear.

For wind turbine applications, 23220-2CS5/W77GEM9 Bearing’s high dynamic load rating ensures reliable performance. Its wide temperature range also makes it suitable for varying climates.

Automotive vs Aerospace: Applications of 23220-2CS5/W77GEM9 Bearing
In automotive systems, 23220-2CS5/W77GEM9 Bearing handles heavy loads in drivetrains and suspensions. The double-row design provides stability, even under uneven forces.

For aerospace ground equipment, 23220-2CS5/W77GEM9 Bearing’s precision and durability are key. Its metric sizing ensures compatibility with international standards.
