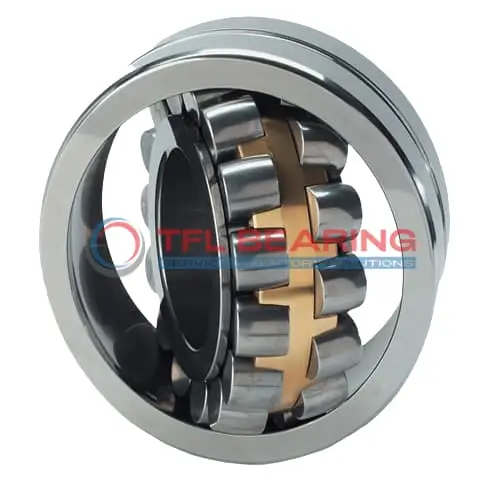

23192 CA/C083W33VE554E Double Row Spherical Roller Bearing

23192 CA/C083W33VE554E Double Row Spherical Roller Bearing

The 23192 CA/C083W33VE554E is a double-row spherical roller bearing with a large 460mm bore and 760mm outer diameter, built from tough chrome steel. It handles combined loads up to 1519708 lbf and runs smoothly at speeds up to 800 RPM.

Its brass cage and open design ensure durability, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 430kg, it’s a robust choice for demanding conditions. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23192 CA/C083W33VE554E
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 760 x 240 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 760 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 240 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 555 mm
  • Shoulder/Recess Dia Of Outer Ring 666 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1519708 lbf
  • Static Radial Load 2427937 lbf
  • Max Speed 800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 430 kg
  • Price （US$） US$11,748.88

Features

How Does 23192 CA/C083W33VE554E Bearing Handle Combined Loads?

23192 CA/C083W33VE554E Bearing features a double-row spherical roller design, ideal for handling both radial and thrust loads.
Its chrome steel construction ensures strength and durability, even under heavy dynamic radial loads up to 1,519,708 lbf.

The brass cage maintains roller alignment, reducing friction and wear for smoother operation.
With a maximum speed of 800 rpm, it balances performance and reliability in demanding conditions.

23192 CA/C083W33VE554E Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance in varying environments.

Application

Industrial Uses of 23192 CA/C083W33VE554E Bearing
23192 CA/C083W33VE554E Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly. The brass cage ensures smooth operation even in demanding conditions.

In wind turbines, 23192 CA/C083W33VE554E Bearing supports the main shaft, providing reliable performance under fluctuating loads and harsh weather. Its large size and robust construction make it ideal for renewable energy applications.

For mining equipment, 23192 CA/C083W33VE554E Bearing’s spherical roller design accommodates misalignment, reducing wear in conveyor systems and excavators. The chrome steel rollers enhance durability in abrasive environments.

What Makes 23192 CA/C083W33VE554E Bearing a Preferred Choice?
23192 CA/C083W33VE554E Bearing is often chosen for paper mills, where its high dynamic load capacity ensures consistent performance in rolling machines. The C3 radial clearance allows for thermal expansion during prolonged use.

In steel plants, 23192 CA/C083W33VE554E Bearing withstands extreme temperatures and heavy loads in rolling mills. Its open design simplifies lubrication, extending service life in high-heat environments.

Built for Heavy-Duty Use: 23192 CA/C083W33VE554E Bearing
23192 CA/C083W33VE554E Bearing excels in construction equipment like cranes and bulldozers, where its combined load capability is crucial. The metric dimensions ensure compatibility with global machinery standards.

For marine applications, 23192 CA/C083W33VE554E Bearing’s corrosion-resistant materials and lubrication grooves enhance performance in ship propulsion systems. Its reliability reduces maintenance needs in saltwater environments.
