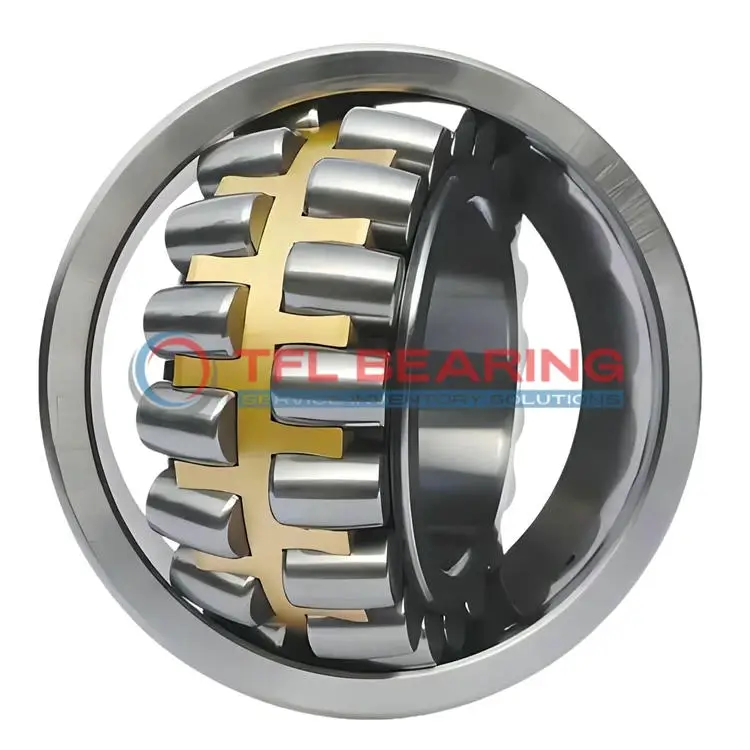

23184 CA/C08W509 Double Row Spherical Roller Bearing

23184 CA/C08W509 Double Row Spherical Roller Bearing

The 23184 CA/C08W509 is a double-row spherical roller bearing with a large 420mm bore and 700mm outer diameter, built from tough chrome steel. It handles heavy combined loads up to 1330644 lbf and runs smoothly at speeds up to 900 RPM.

Its brass cage and open design allow for easy lubrication, with grooves and holes for efficient maintenance. The bearing operates reliably in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a radial run-out of P5 and CN clearance, it offers precise performance for industrial applications. This model is interchangeable with SKF bearings, ensuring easy replacements.

Ideal for heavy machinery like crushers or mining equipment where high radial and axial loads are common. Weighing 345kg, it’s built for durability in rugged conditions, while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23184 CA/C08W509
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 700 x 224 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 700 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 224 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 483 mm
  • Shoulder/Recess Dia Of Outer Ring 607 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1330644 lbf
  • Static Radial Load 2090723 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 345 kg
  • Price （US$） US$8,761.91

Features

Performance Features of 23184 CA/C08W509 Bearing

23184 CA/C08W509 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,330,644 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 900 rpm, it delivers reliable performance in demanding conditions.

23184 CA/C08W509 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring smooth operation.

The lubrication groove and hole design facilitate easy maintenance and prolonged service life.
Weighing 345 kg, it is designed for robust industrial use while maintaining precision.

Application

Industrial Uses of 23184 CA/C08W509 Bearing
23184 CA/C08W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 23184 CA/C08W509 Bearing supports the main shaft, providing reliable performance in variable weather conditions. Its large bore size and metric dimensions make it suitable for European and Asian turbine designs.

For mining equipment, 23184 CA/C08W509 Bearing’s chrome steel construction offers durability in harsh environments. The open seal design allows for easy lubrication, extending service life in demanding operations.

Where Is 23184 CA/C08W509 Bearing Used?
You’ll often find 23184 CA/C08W509 Bearing in paper mill machinery, where its combined load capacity handles both radial and axial forces. The P5 radial run-out ensures precise alignment for consistent performance.

In steel production plants, 23184 CA/C08W509 Bearing is ideal for rolling mills due to its high dynamic radial load rating. The temperature range up to 200°C makes it suitable for hot rolling processes.

Built for Heavy-Duty Use: 23184 CA/C08W509 Bearing
23184 CA/C08W509 Bearing excels in construction equipment like cranes and excavators, where its robust design withstands shock loads. The lubrication groove simplifies maintenance in field conditions.

For marine applications, 23184 CA/C08W509 Bearing’s corrosion-resistant materials ensure reliability in saltwater environments. Its large size and weight make it a staple in ship propulsion systems.

Automotive vs Aerospace: Applications of 23184 CA/C08W509 Bearing
In automotive testing rigs, 23184 CA/C08W509 Bearing handles high-speed rotations with minimal vibration. The CN radial clearance provides a balance between precision and durability.

For aerospace ground support equipment, 23184 CA/C08W509 Bearing’s brass cage reduces friction during prolonged use. Its static radial load capacity ensures stability in heavy lifting applications.
