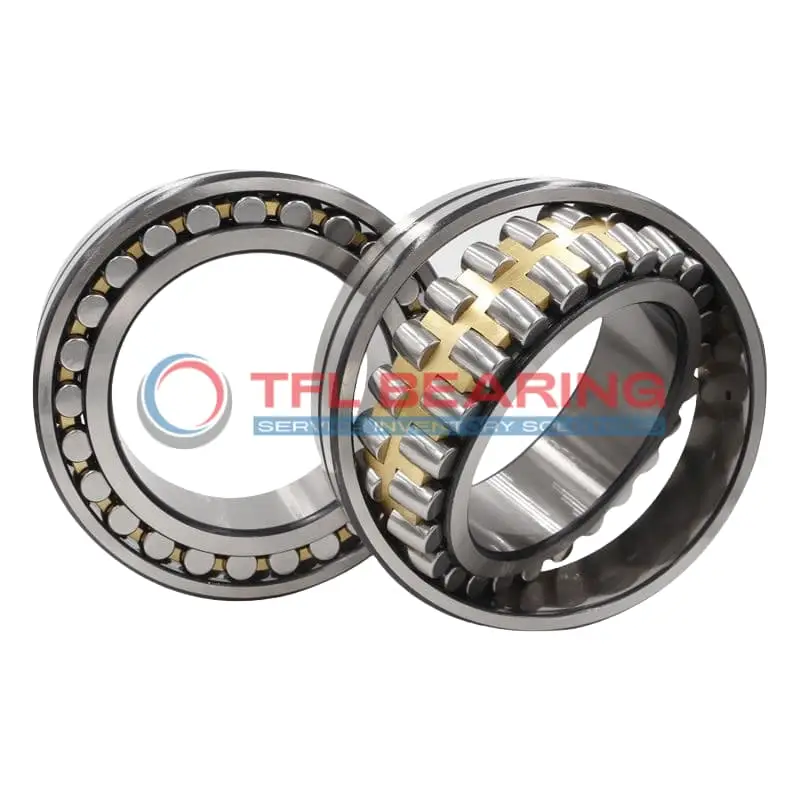

23180 CAM C04 W509 Double Row Spherical Roller Bearing

23180 CAM C04 W509 Double Row Spherical Roller Bearing

The 23180 CAM C04 W509 is a double-row spherical roller bearing with a 400mm bore and 650mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1093471 lbf and runs smoothly at speeds up to 950 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range of -30°C to 200°C. The bearing features a lubrication groove and holes for maintenance convenience.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or mining equipment where high radial loads are common.

Weighing 260kg, it’s a robust unit designed for long-term performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23180 CAM C04 W509
  • Brand TFL
  • Interchangeable SKF
  • Size 400 x 650 x 200 mm
  • Bore Dia 400 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 200 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 475 mm
  • Shoulder/Recess Dia Of Outer Ring 566 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1093471 lbf
  • Static Radial Load 1719788 lbf
  • Max Speed 950 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 260 kg
  • Price （US$） US$5,028.48

Features

How Is 23180 CAM C04 W509 Bearing Engineered for Reliability?

23180 CAM C04 W509 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel rings and rollers provide robust resistance to wear, ensuring long-term durability.

The brass cage maintains roller alignment, reducing friction and enhancing performance under heavy radial loads.
With a dynamic radial load capacity of 1,093,471 lbf, it excels in demanding industrial applications.

23180 CAM C04 W509 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its lubrication groove and hole design ensure consistent performance, even at high speeds up to 950 rpm.

Application

Industrial Uses of 23180 CAM C04 W509 Bearing
23180 CAM C04 W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The brass cage ensures smooth operation even under high stress.

Where Is 23180 CAM C04 W509 Bearing Used?
You’ll often find 23180 CAM C04 W509 Bearing in mining equipment, where its large bore and robust construction withstand extreme conditions. Its chrome steel rollers provide long-lasting performance in abrasive environments.

Built for Heavy-Duty Use: 23180 CAM C04 W509 Bearing
23180 CAM C04 W509 Bearing excels in paper mills and steel plants, where high radial loads are common. The lubrication groove design simplifies maintenance, reducing downtime.

Automotive vs Aerospace: Applications of 23180 CAM C04 W509 Bearing
In automotive applications, 23180 CAM C04 W509 Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its temperature range suits both environments.

Key Fields for 23180 CAM C04 W509 Bearing
23180 CAM C04 W509 Bearing is ideal for wind turbines, where its spherical rollers accommodate shaft misalignment. The metric dimensions ensure compatibility with global designs.
