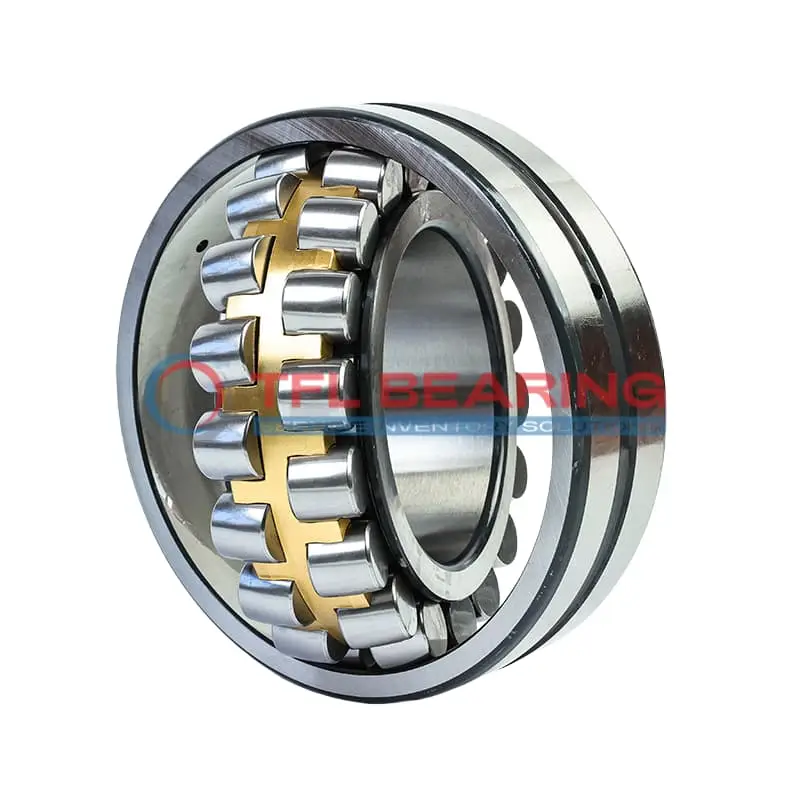

23172 CAC/C08W507 Double Row Spherical Roller Bearing

23172 CAC/C08W507 Double Row Spherical Roller Bearing

The 23172 CAC/C08W507 is a double-row spherical roller bearing with a 360mm bore and 600mm outer diameter, built from sturdy chrome steel for heavy-duty use. It handles combined loads up to 1015012 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage and spherical rollers ensure reliable performance under high radial loads, while the open design allows for easy lubrication. The bearing works in temperatures from -30°C to 200°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for industrial machinery like crushers or large gearboxes where heavy radial and axial loads are common.

Weighing 230kg, it’s designed for robust applications. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The lubrication groove and holes simplify maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23172 CAC/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 360 x 600 x 192 mm
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 192 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 418 mm
  • Shoulder/Recess Dia Of Outer Ring 524 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1015012 lbf
  • Static Radial Load 1562422 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 230 kg
  • Price （US$） US$5,566.14

Features

Performance Features of 23172 CAC/C08W507 Bearing

23172 CAC/C08W507 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,015,012 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures proper roller alignment, enhancing durability and reducing friction.
With a maximum speed of 1,000 rpm, it delivers reliable performance under demanding conditions.

23172 CAC/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring smooth operation.

The lubrication groove and hole design in 23172 CAC/C08W507 Bearing simplify maintenance.
This feature helps extend service life while reducing downtime.

23172 CAC/C08W507 Bearing’s precise radial run-out (P5) ensures high rotational accuracy.
Its robust construction makes it a dependable choice for industrial machinery.

Application

Industrial Uses of 23172 CAC/C08W507 Bearing
23172 CAC/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23172 CAC/C08W507 Bearing supports the main shaft, offering reliable performance in varying weather conditions. Its chrome steel construction provides excellent durability for long-term use.

For mining equipment, 23172 CAC/C08W507 Bearing’s high dynamic radial load capacity makes it ideal for conveyors and excavators. The lubrication groove design simplifies maintenance in harsh environments.

Where Is 23172 CAC/C08W507 Bearing Used?
You’ll find 23172 CAC/C08W507 Bearing in paper mills, where its spherical roller design accommodates misalignment in large rollers. The metric sizing ensures compatibility with European machinery standards.

In steel plants, 23172 CAC/C08W507 Bearing handles extreme loads in rolling mills. Its temperature range of -30° to 200°C makes it suitable for both hot and cold processes.

Built for Heavy-Duty Use: 23172 CAC/C08W507 Bearing
23172 CAC/C08W507 Bearing excels in construction equipment like cranes, where its static radial load capacity supports heavy lifting. The open seal type allows for easy lubrication access.

In marine applications, 23172 CAC/C08W507 Bearing’s corrosion-resistant materials ensure reliability in saltwater environments. Its large bore diameter fits perfectly with propeller shafts.

Automotive vs Aerospace: Applications of 23172 CAC/C08W507 Bearing
In automotive testing rigs, 23172 CAC/C08W507 Bearing withstands high-speed rotations for durability assessments. The P5 radial run-out ensures precision in performance measurements.

For aerospace ground equipment, 23172 CAC/C08W507 Bearing’s brass cage reduces vibration in fuel pumps. Its wide temperature range adapts to both desert and arctic conditions.
