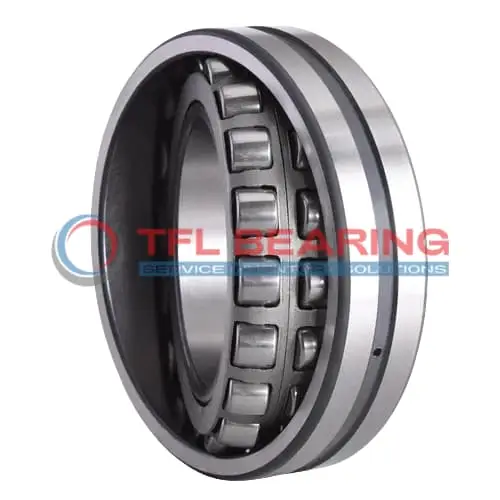

23160 CC/W509 Double Row Spherical Roller Bearing

23160 CC/W509 Double Row Spherical Roller Bearing

The 23160 CC/W509 is a double-row spherical roller bearing with a 300mm bore and 500mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 757157 lbf and operates smoothly at speeds up to 1200 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy loads. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial and axial loads are present.

Weighing 130kg, it’s a robust unit designed for long-term use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23160 CC/W509
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 500 x 160 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 500 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 160 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 345 mm
  • Shoulder/Recess Dia Of Outer Ring 434 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 757157 lbf
  • Static Radial Load 1146526 lbf
  • Max Speed 1200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 130 kg

Features

Performance Features of 23160 CC/W509 Bearing

23160 CC/W509 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 757157 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth performance.
With a maximum speed of 1200 rpm, it balances durability and efficiency under demanding conditions.

23160 CC/W509 Bearing operates in temperatures from -30° to 200°C, suitable for various industrial environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Lubrication grooves and holes in 23160 CC/W509 Bearing facilitate easy maintenance and consistent performance.
Its cylindrical bore design simplifies installation, saving time and effort during setup.

Application

Industrial Uses of 23160 CC/W509 Bearing
23160 CC/W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps accommodate misalignment, reducing wear in demanding environments.

Where Is 23160 CC/W509 Bearing Used?
You’ll often find 23160 CC/W509 Bearing in mining equipment, where its high load capacity and durability are essential for continuous operation. The open design allows for easy lubrication, keeping performance smooth even under extreme conditions.

Built for Heavy-Duty Use: 23160 CC/W509 Bearing
23160 CC/W509 Bearing excels in steel mills and paper processing plants, where high temperatures and heavy loads are common. Its chrome steel rollers and cage provide long-lasting reliability, minimising downtime for maintenance.

Automotive vs Aerospace: Applications of 23160 CC/W509 Bearing
In automotive applications, 23160 CC/W509 Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. The metric sizing ensures compatibility with a wide range of industrial and transport machinery.

Perfect Fit for Automation: 23160 CC/W509 Bearing
23160 CC/W509 Bearing is ideal for robotic assembly lines, where precision and load capacity are critical. The spherical rollers help maintain alignment, ensuring smooth movement in automated systems.
