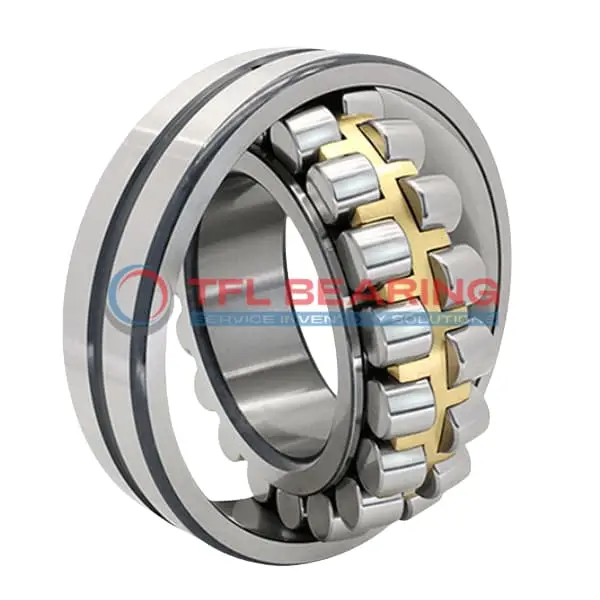

23152 CAC/C084W507 Double Row Spherical Roller Bearing

23152 CAC/C084W507 Double Row Spherical Roller Bearing

The 23152 CAC/C084W507 is a double-row spherical roller bearing with a 260mm bore and 440mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 577309 lbf and runs smoothly at speeds up to 1400 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The bearing features a C4 radial clearance for reliable performance under heavy loads.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery, industrial gearboxes, or applications requiring high radial load capacity.

Weighing 91kg, it’s a robust unit designed for long-term use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23152 CAC/C084W507
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 440 x 144 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 144 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 314 mm
  • Shoulder/Recess Dia Of Outer Ring 380 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 577309 lbf
  • Static Radial Load 843034 lbf
  • Max Speed 1400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 91 kg
  • Price （US$） US$927.82

Features

Performance Features of 23152 CAC/C084W507 Bearing

23152 CAC/C084W507 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 577309 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1400 rpm, it maintains reliable performance under demanding conditions.

23152 CAC/C084W507 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its C4 radial clearance provides flexibility, ensuring smooth operation even under heavy loads.

Application

Industrial Uses of 23152 CAC/C084W507 Bearing
23152 CAC/C084W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23152 CAC/C084W507 Bearing supports the main shaft, providing reliability in harsh weather conditions. Its C4 radial clearance allows for thermal expansion, making it ideal for fluctuating temperatures.

For mining equipment, 23152 CAC/C084W507 Bearing’s chrome steel construction withstands abrasive environments. The open design simplifies lubrication, extending service life in demanding applications.

What Makes 23152 CAC/C084W507 Bearing a Preferred Choice?
23152 CAC/C084W507 Bearing is a go-to for paper mills, where its high dynamic load capacity keeps rollers running smoothly. The spherical rollers compensate for shaft deflections, reducing downtime.

In steel plants, 23152 CAC/C084W507 Bearing handles the intense loads of rolling mills. Its temperature range up to 200°C ensures performance even in hot working conditions.

Built for Heavy-Duty Use: 23152 CAC/C084W507 Bearing
23152 CAC/C084W507 Bearing excels in construction equipment like cranes, where its robust design supports heavy lifting. The metric sizing ensures compatibility with global machinery standards.

For marine applications, 23152 CAC/C084W507 Bearing’s corrosion-resistant materials and lubrication grooves enhance durability. It’s a reliable choice for propeller shafts and deck machinery.

Automotive vs Aerospace: Applications of 23152 CAC/C084W507 Bearing
In large trucks, 23152 CAC/C084W507 Bearing is used in differential systems, handling combined loads efficiently. Its brass cage reduces friction, improving fuel efficiency.

For aerospace ground equipment, this bearing supports heavy loaders and tow tractors. The high static radial load capacity ensures safety and reliability in critical operations.
