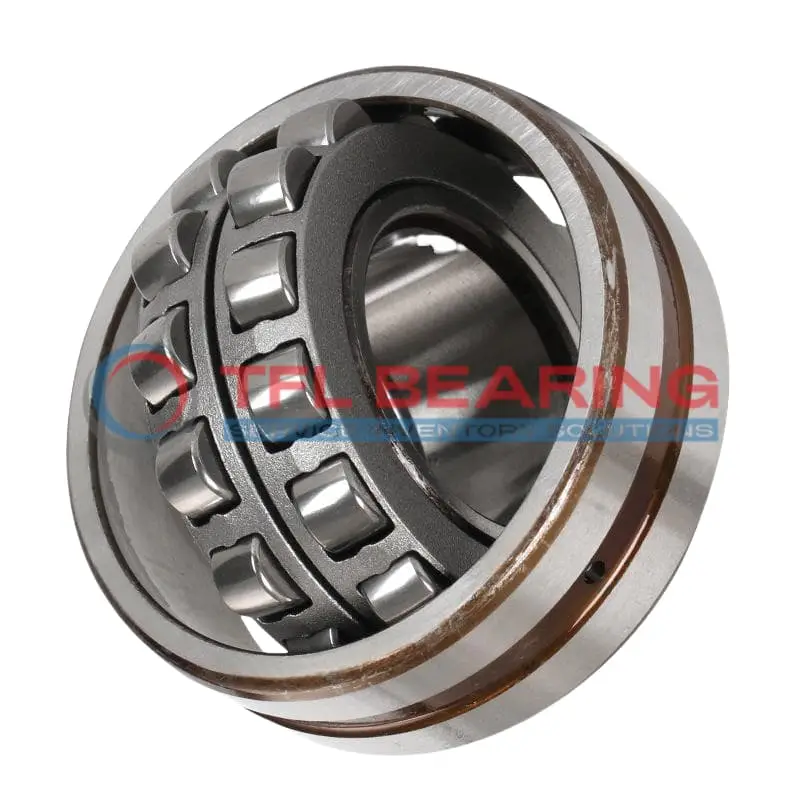

23130 CC/C08W33 Double Row Spherical Roller Bearing

23130 CC/C08W33 Double Row Spherical Roller Bearing

The 23130 CC/C08W33 is a double-row spherical roller bearing with a 150mm bore and 250mm outer diameter, crafted from sturdy chrome steel for long-lasting use. It manages combined loads up to 198506 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design and steel cage ensure durability, while the lubrication groove and holes make maintenance straightforward. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suited for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 16kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards. The P5 radial run-out ensures precise performance in critical setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23130 CC/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 150 x 250 x 80 mm
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 172 mm
  • Shoulder/Recess Dia Of Outer Ring 216 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 198506 lbf
  • Static Radial Load 269771 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 16 kg

Features

Performance Features of 23130 CC/C08W33 Bearing

23130 CC/C08W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 198506 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 2600 rpm, it delivers reliable performance in demanding environments.

23130 CC/C08W33 Bearing operates in temperatures from -30° to 200°C, adapting to various industrial settings.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.

Lubrication grooves and holes in 23130 CC/C08W33 Bearing ensure proper lubrication for consistent performance.
Its P5 radial run-out precision makes it ideal for applications requiring high accuracy.

Application

Industrial Uses of 23130 CC/C08W33 Bearing
23130 CC/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

Where Is 23130 CC/C08W33 Bearing Used?
In mining equipment, 23130 CC/C08W33 Bearing excels due to its high dynamic radial load capacity and resistance to harsh conditions. Its steel cage and chrome steel rollers provide durability in dusty or high-vibration environments.

Built for Heavy-Duty Use: 23130 CC/C08W33 Bearing
23130 CC/C08W33 Bearing is ideal for wind turbines, where its ability to handle radial and axial loads simultaneously improves energy efficiency. The wide temperature range also makes it suitable for outdoor applications in varying climates.

Automotive vs Aerospace: Applications of 23130 CC/C08W33 Bearing
In automotive applications, 23130 CC/C08W33 Bearing supports large drivetrain components, while in aerospace, its precision and reliability are valued for auxiliary systems. The metric sizing ensures compatibility across industries.

Essential Roles of 23130 CC/C08W33 Bearing
23130 CC/C08W33 Bearing is a go-to choice for paper mills, where its robust construction withstands continuous operation. The lubrication groove design simplifies maintenance, reducing downtime in high-production settings.
