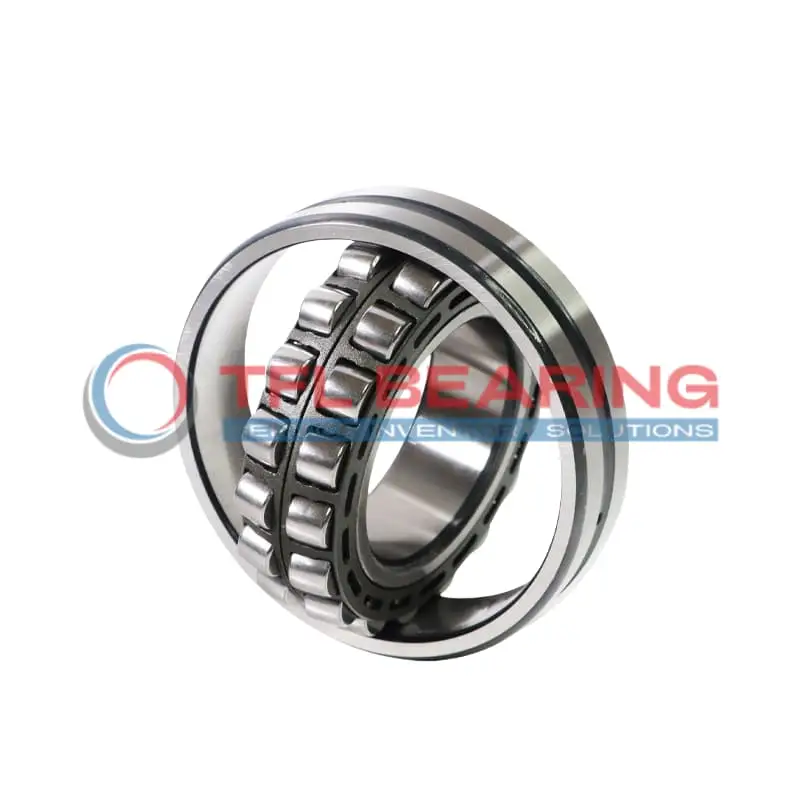

23128 CCK/C082W33 Double Row Spherical Roller Bearing

The 23128 CCK/C082W33 is a double-row spherical roller bearing with a 140mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 148149 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 10.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding environments.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 23128 CCK/C082W33
Brand TFL
Interchangeable SKF
Size 140 x 225 x 68 mm
Bore Dia 140 mm
Bore Dia Tolerance +0.04mm to 0
Outer Dia 225 mm
Outer Dia Tolerance -0.030mm to 0
Width 68 mm
Width Tolerance -0.08mm to 0
Shoulder Dia Of Inner Ring 159 mm
Shoulder/Recess Dia Of Outer Ring 197 mm
Width Of Lubrication Groove 8.3 mm
Diameter Of Lubrication Hole 4.5 mm
Chamfer Dimension min.2.1 mm
System of Measurement Metric
Radial run-out P5
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Taper 1:12
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 148149 lbf
Static Radial Load 202328 lbf
Max Speed 2800 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance C2
RoHs Compliant
REACH Compliant
Weight 10.5 kg
Price （US$） US$241.23

Features

Performance Features of 23128 CCK/C082W33 Bearing

23128 CCK/C082W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 148149 lbf, ensuring robust performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth operation.
With a maximum speed of 2800 rpm, it balances efficiency and durability under demanding conditions.

23128 CCK/C082W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Lubrication grooves and holes in 23128 CCK/C082W33 Bearing facilitate easy maintenance.
Its tapered bore design simplifies installation, saving time and effort.

Application

Industrial Uses of 23128 CCK/C082W33 Bearing
23128 CCK/C082W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction allows for slight misalignment, making it ideal for rugged environments.

What Makes 23128 CCK/C082W33 Bearing a Preferred Choice?
In mining equipment, 23128 CCK/C082W33 Bearing’s high dynamic load capacity ensures reliable performance under extreme conditions. Its tapered bore design also simplifies installation and maintenance in large-scale operations.

Built for Heavy-Duty Use: 23128 CCK/C082W33 Bearing
For wind turbines, 23128 CCK/C082W33 Bearing’s ability to withstand combined loads and high speeds makes it a dependable component. The chrome steel construction and steel cage enhance durability in long-term applications.

Automotive vs Aerospace: Applications of 23128 CCK/C082W33 Bearing
In automotive applications, 23128 CCK/C082W33 Bearing supports heavy-duty axles and transmissions, while in aerospace, its precision and load capacity suit auxiliary systems. The wide temperature range ensures performance in varying climates.

Perfect Fit for Automation: 23128 CCK/C082W33 Bearing
23128 CCK/C082W33 Bearing is often found in robotic arms and automated production lines, where its smooth operation and high-speed capability are crucial. The open design allows for easy lubrication, reducing downtime.
