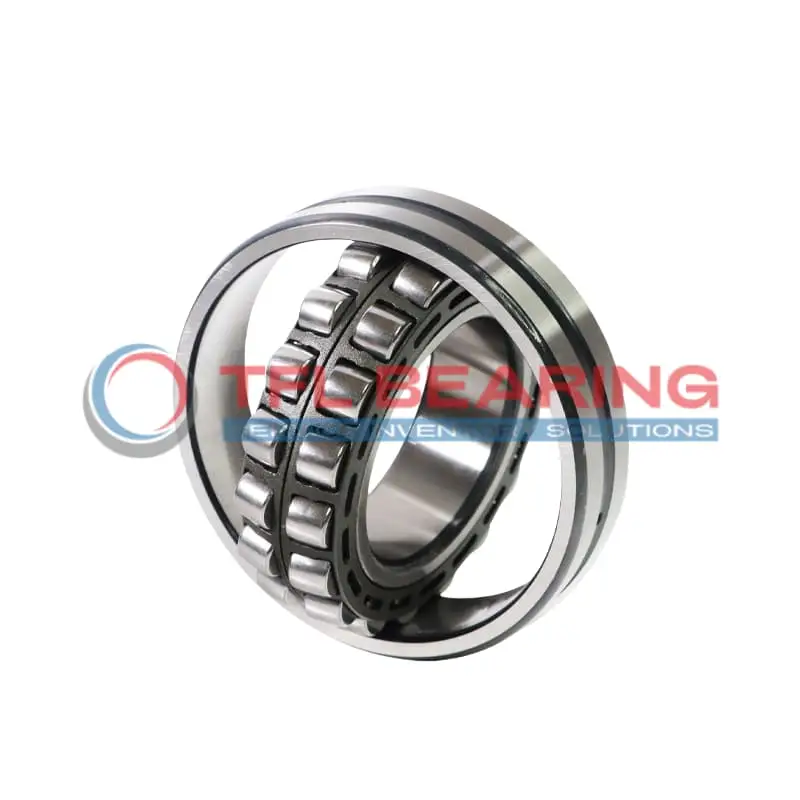

23128 CC C3 W33 YR557 Double Row Spherical Roller Bearing

23128 CC C3 W33 YR557 Double Row Spherical Roller Bearing

The 23128 CC C3 W33 YR557 is a double-row spherical roller bearing with a 140mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 148149 lbf and operates smoothly at speeds up to 2800 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 10.5kg, it’s built to handle tough conditions. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23128 CC C3 W33 YR557
  • Brand TFL
  • Interchangeable SKF
  • Size 140 x 225 x 68 mm
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 68 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 159 mm
  • Shoulder/Recess Dia Of Outer Ring 197 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 148149 lbf
  • Static Radial Load 202328 lbf
  • Max Speed 2800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 10.5 kg
  • Price （US$） US$180.18

Features

How Does 23128 CC C3 W33 YR557 Bearing Handle Combined Loads?

23128 CC C3 W33 YR557 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures high strength and durability under heavy loads, with a dynamic radial load capacity of 148149 lbf.
The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 2800 rpm, it performs reliably in demanding industrial applications.

Why Choose 23128 CC C3 W33 YR557 Bearing for High-Temperature Applications?

23128 CC C3 W33 YR557 Bearing operates efficiently in temperatures ranging from -30° to 200 °C, making it suitable for harsh environments.
Its chrome steel rollers and rings resist thermal deformation, ensuring consistent performance.
The lubrication groove and holes facilitate proper grease distribution, reducing wear.
This design ensures long service life even under extreme conditions.

Engineered for Precision: 23128 CC C3 W33 YR557 Bearing

23128 CC C3 W33 YR557 Bearing is precision-crafted with a cylindrical bore for accurate alignment and smooth operation.
Its spherical roller design compensates for misalignment, reducing stress on adjacent components.
The C3 radial clearance allows for thermal expansion, maintaining performance under varying temperatures.
This makes it a reliable choice for heavy machinery and industrial equipment.

Application

Industrial Uses of 23128 CC C3 W33 YR557 Bearing
23128 CC C3 W33 YR557 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads effortlessly. The brass cage ensures smooth operation even in demanding conditions.

In automotive applications, 23128 CC C3 W33 YR557 Bearing supports large drivetrain components, such as truck axles, thanks to its robust construction. The C3 radial clearance allows for thermal expansion during long hauls.

For wind turbines, 23128 CC C3 W33 YR557 Bearing’s spherical roller design accommodates misalignment, making it ideal for nacelle applications. Its high-temperature tolerance ensures reliability in varying weather conditions.

Where Is 23128 CC C3 W33 YR557 Bearing Used?
You’ll often find 23128 CC C3 W33 YR557 Bearing in mining equipment, where its chrome steel rollers withstand abrasive environments. The lubrication groove design extends service intervals.

In paper mills, 23128 CC C3 W33 YR557 Bearing handles the heavy loads of drying cylinders with ease. The open seal type simplifies maintenance in humid conditions.

Built for Heavy-Duty Use: 23128 CC C3 W33 YR557 Bearing
23128 CC C3 W33 YR557 Bearing excels in construction machinery like cranes, where its dynamic load capacity supports repetitive lifting. The metric sizing ensures compatibility with global equipment standards.

For marine applications, 23128 CC C3 W33 YR557 Bearing’s corrosion-resistant materials perform well in saltwater environments. The wide temperature range suits both Arctic and tropical operations.

Automotive vs Aerospace: Applications of 23128 CC C3 W33 YR557 Bearing
In automotive systems, 23128 CC C3 W33 YR557 Bearing handles wheel hub loads, while in aerospace, it’s suited for auxiliary gearboxes. The brass cage reduces vibration in both scenarios.

For industrial pumps, 23128 CC C3 W33 YR557 Bearing’s spherical rollers compensate for shaft deflection. The lubrication holes ensure consistent performance in continuous operations.
