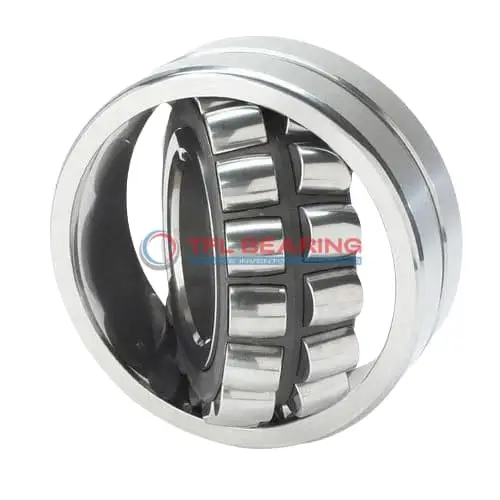

23124 CY Double Row Spherical Roller Bearing

23124 CY Double Row Spherical Roller Bearing

The 23124 CY is a double-row spherical roller bearing with a 120mm bore and 200mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 120048 lbf and operates smoothly at speeds up to 3400 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 7.75kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23124 CY
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 200 x 62 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 62 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 139 mm
  • Shoulder/Recess Dia Of Outer Ring 174 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 120048 lbf
  • Static Radial Load 156242 lbf
  • Max Speed 3400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.75 kg
  • Price （US$） US$136.44

Features

Performance Features of 23124 CY Bearing

23124 CY Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 120048 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 3400 rpm, it delivers both durability and efficiency.

23124 CY Bearing operates in temperatures from -30° to 200°C, suitable for various industrial environments.
Its double-row spherical design accommodates misalignment, enhancing reliability under demanding conditions.

The lubrication groove and hole design ensure consistent grease distribution, reducing maintenance needs.
23124 CY Bearing’s precision construction meets standard radial run-out requirements for smooth operation.

Application

Industrial Uses of 23124 CY Bearing
23124 CY Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads effortlessly.
The brass cage ensures smooth operation even under high stress, making it a reliable choice for demanding industrial environments.

What Makes 23124 CY Bearing a Preferred Choice?
In mining equipment, 23124 CY Bearing excels due to its robust construction and ability to withstand harsh conditions.
Its high dynamic radial load capacity makes it suitable for applications where durability and performance are critical.

Built for Heavy-Duty Use: 23124 CY Bearing
For construction machinery such as cranes and excavators, 23124 CY Bearing provides stability and long service life.
The chrome steel rollers and rings offer excellent wear resistance, ensuring consistent performance over time.

Automotive vs Aerospace: Applications of 23124 CY Bearing
In automotive applications, 23124 CY Bearing supports components like gearboxes and axles, where combined loads are common.
While in aerospace, its high-temperature tolerance and precision make it suitable for auxiliary systems requiring reliable performance.

Where Is 23124 CY Bearing Used?
You’ll find 23124 CY Bearing in wind turbines, where its ability to handle misalignment and heavy loads is invaluable.
The open design allows for easy lubrication, ensuring smooth operation even in remote or hard-to-access locations.
