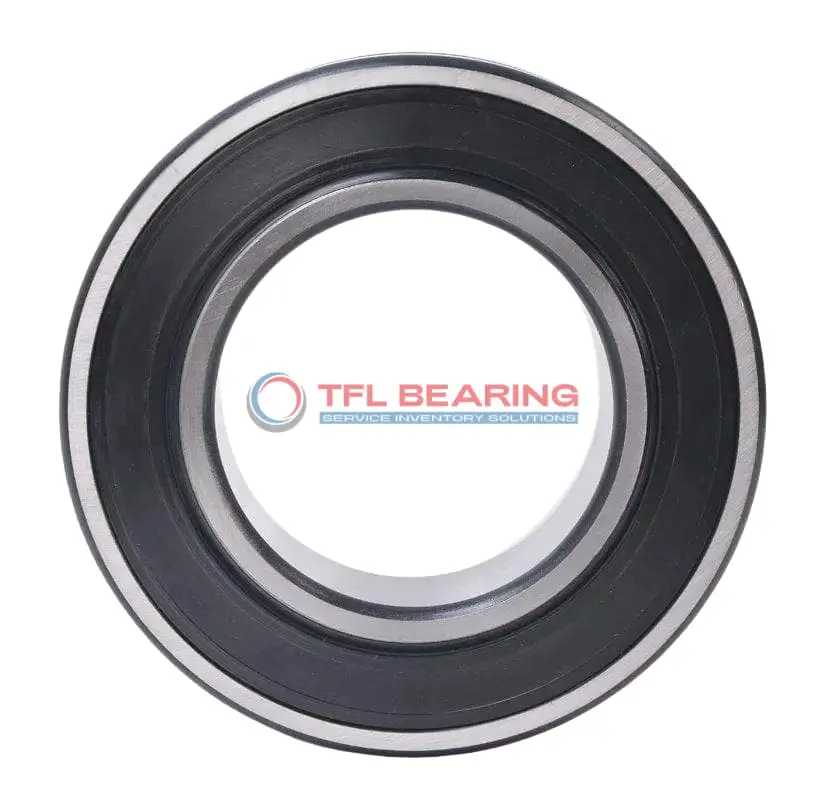

23124-2CS5K/VT143 Double Row Spherical Roller Bearing

23124-2CS5K/VT143 Double Row Spherical Roller Bearing

The 23124-2CS5K/VT143 is a double-row spherical roller bearing with a 120mm bore and 200mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 120273 lbf and operates smoothly at speeds up to 720 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The tapered bore (1:12) allows for secure mounting, and lubrication grooves simplify maintenance.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads are common. It works in temperatures from -30°C to 200°C.

Weighing 7.4kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23124-2CS5K/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 200 x 62 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 62 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 135 mm
  • Shoulder/Recess Dia Of Outer Ring 183 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 120273 lbf
  • Static Radial Load 156242 lbf
  • Max Speed 720 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.4 kg

Features

Engineered for Reliability: 23124-2CS5K/VT143 Bearing

23124-2CS5K/VT143 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding conditions.

The double seal design of 23124-2CS5K/VT143 Bearing protects against contaminants, extending its service life.
With a dynamic radial load capacity of 120273 lbf, it performs reliably under heavy loads.

23124-2CS5K/VT143 Bearing operates smoothly within a temperature range of -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit in various applications.

The lubrication groove and holes in 23124-2CS5K/VT143 Bearing facilitate easy maintenance.
This design helps maintain optimal performance even in high-speed conditions up to 720 rpm.

Application

Industrial Uses of 23124-2CS5K/VT143 Bearing
23124-2CS5K/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The tapered bore ensures a secure fit, reducing slippage during high-stress operations.

In automotive applications, 23124-2CS5K/VT143 Bearing supports components like axle systems, providing stability under varying loads. Its double-seal design keeps contaminants out, extending service life in harsh environments.

For construction equipment, 23124-2CS5K/VT143 Bearing’s spherical rollers accommodate misalignment, making it ideal for cranes and excavators. The chrome steel construction offers durability, even under continuous heavy use.

In mining operations, 23124-2CS5K/VT143 Bearing’s high dynamic load capacity ensures reliability in conveyor systems. The lubrication groove simplifies maintenance, reducing downtime in demanding conditions.
