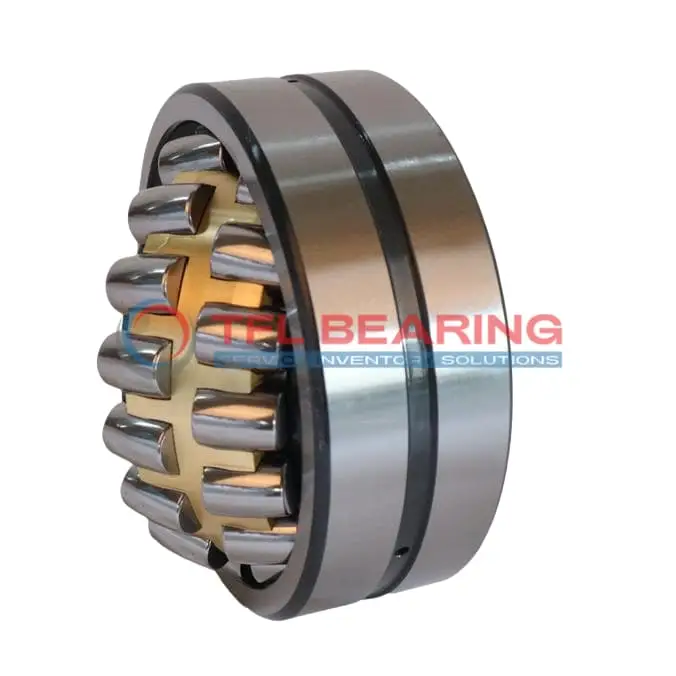

231/600 CA/W33 Double Row Spherical Roller Bearing

231/600 CA/W33 Double Row Spherical Roller Bearing

The 231/600 CA/W33 is a double-row spherical roller bearing with a large 600mm bore and 980mm outer diameter, built from tough chrome steel. It handles combined loads up to 2413998 lbf and runs smoothly at speeds up to 560 RPM.

Its brass cage and open design ensure durability, while the lubrication groove simplifies maintenance. The bearing operates well in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 900kg, it’s a robust choice for demanding settings. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/600 CA/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 980 x 300 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 980 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 300 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 722 mm
  • Shoulder/Recess Dia Of Outer Ring 863 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2413998 lbf
  • Static Radial Load 4046561 lbf
  • Max Speed 560 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 900 kg
  • Price （US$） US$20,910.35

Features

Performance Features of 231/600 CA/W33 Bearing

231/600 CA/W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 2,413,998 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures proper roller alignment, enhancing durability and reducing operational wear.
With a maximum speed of 560 rpm, it delivers reliable performance under demanding conditions.

231/600 CA/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring smooth operation in varied environments.

The lubrication groove and hole design in 231/600 CA/W33 Bearing facilitate consistent grease distribution.
This feature helps maintain optimal performance while reducing maintenance frequency.

Application

Industrial Uses of 231/600 CA/W33 Bearing
The 231/600 CA/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly.
Its brass cage and chrome steel rollers ensure durability even in harsh industrial environments.

What Makes 231/600 CA/W33 Bearing a Preferred Choice?
In mining equipment, 231/600 CA/W33 Bearing excels due to its ability to withstand misalignment and heavy shock loads.
The lubrication groove design also simplifies maintenance, reducing downtime in critical operations.

Built for Heavy-Duty Use: 231/600 CA/W33 Bearing
For wind turbines, 231/600 CA/W33 Bearing provides reliable performance under fluctuating loads and variable speeds.
Its wide temperature range makes it suitable for both extreme cold and hot operating conditions.

Automotive vs Aerospace: Applications of 231/600 CA/W33 Bearing
While 231/600 CA/W33 Bearing isn’t typical in cars, it’s vital in large aerospace ground support equipment.
The bearing’s high static load capacity ensures stability for heavy lifting and positioning systems.

Key Fields for 231/600 CA/W33 Bearing
In steel mills, 231/600 CA/W33 Bearing supports rolling mills, where its spherical rollers accommodate shaft deflections.
The open seal design allows for easy relubrication, extending service life in high-heat environments.
