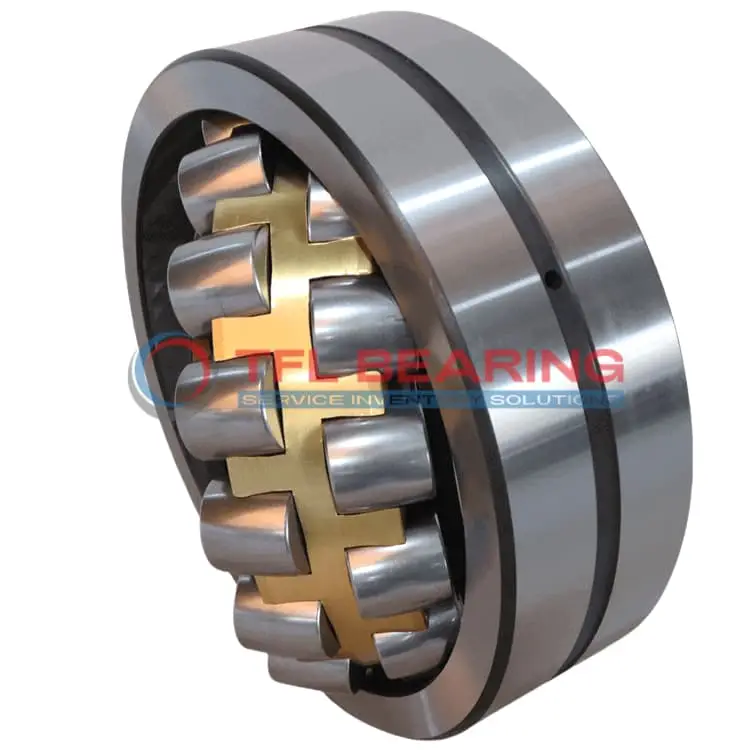

231/530 CAK/C083W507 Double Row Spherical Roller Bearing

231/530 CAK/C083W507 Double Row Spherical Roller Bearing

The 231/530 CAK/C083W507 is a double-row spherical roller bearing with a large 530mm bore and 870mm outer diameter, built from tough chrome steel. It handles combined loads up to 1916721 lbf and runs smoothly at speeds up to 670 RPM.

Its brass cage and spherical rollers ensure durability, while the tapered bore design allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or mining equipment where high radial loads are common.

Weighing 640kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, it requires regular lubrication for optimal performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/530 CAK/C083W507
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 870 x 272 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance +0.07mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 638 mm
  • Shoulder/Recess Dia Of Outer Ring 763 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1916721 lbf
  • Static Radial Load 3147325 lbf
  • Max Speed 670 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 640 kg
  • Price （US$） US$16,411.58

Features

Performance Features of 231/530 CAK/C083W507 Bearing

231/530 CAK/C083W507 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 1,916,721 lbf, ensuring reliable operation under heavy stress.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 670 rpm, it balances performance and longevity in demanding conditions.

231/530 CAK/C083W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, making it suitable for various industrial applications.

The open seal type allows for easy lubrication, ensuring smooth operation over extended periods.
This bearing’s C3 radial clearance provides optimal performance under varying load conditions.

231/530 CAK/C083W507 Bearing’s double-row spherical rollers accommodate misalignment, reducing wear.
Its large size and high load capacity make it ideal for heavy machinery and industrial equipment.

Application

Industrial Uses of 231/530 CAK/C083W507 Bearing
231/530 CAK/C083W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under extreme conditions.

What Makes 231/530 CAK/C083W507 Bearing a Preferred Choice?
In mining equipment, 231/530 CAK/C083W507 Bearing’s tapered bore allows for secure mounting on shafts, reducing slippage during operation. Its chrome steel construction offers excellent wear resistance in abrasive environments.

Built for Heavy-Duty Use: 231/530 CAK/C083W507 Bearing
For wind turbines, 231/530 CAK/C083W507 Bearing’s spherical roller design compensates for misalignment, ensuring reliable performance. The C3 radial clearance accommodates thermal expansion during continuous use.

Automotive vs Aerospace: Applications of 231/530 CAK/C083W507 Bearing
In large trucks, 231/530 CAK/C083W507 Bearing supports drivetrain components, while in aerospace, its high-temperature tolerance makes it suitable for auxiliary systems. The metric sizing ensures compatibility across industries.

Where Is 231/530 CAK/C083W507 Bearing Used?
You’ll find 231/530 CAK/C083W507 Bearing in paper mills, where its dynamic load capacity handles the stresses of rolling machinery. The open seal design simplifies lubrication maintenance.
