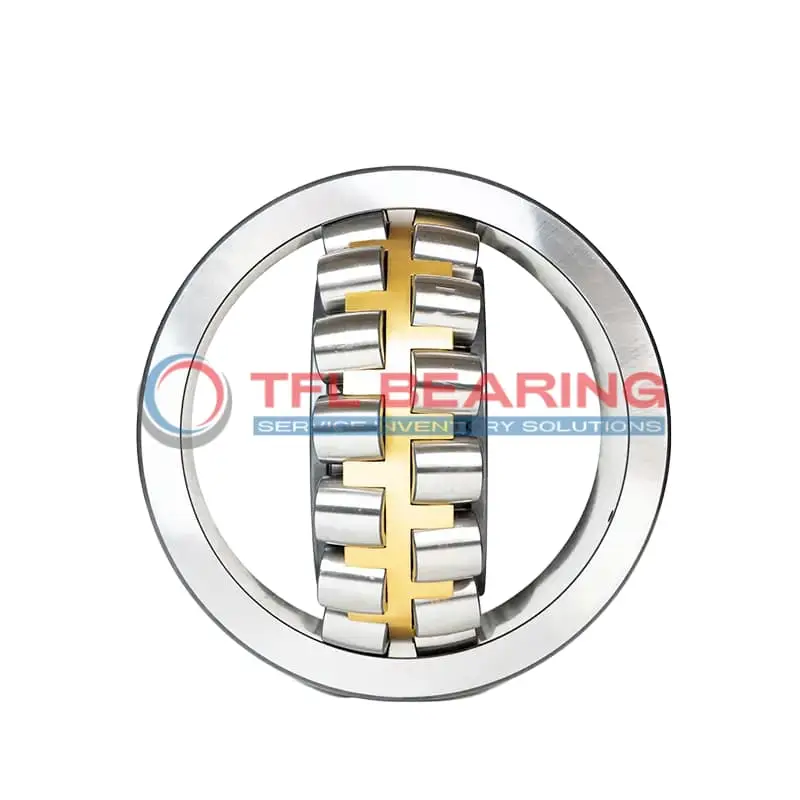

23088 CA/C08W33 Double Row Spherical Roller Bearing

23088 CA/C08W33 Double Row Spherical Roller Bearing

The 23088 CA/C08W33 is a double-row spherical roller bearing with a large 440mm bore and 650mm outer diameter, crafted from robust chrome steel. It supports combined loads up to 861243 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The bearing features a lubrication groove and holes for efficient maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 180kg, it’s built for strength and reliability. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23088 CA/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 440 x 650 x 157 mm
  • Bore Dia 440 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 157 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 511 mm
  • Shoulder/Recess Dia Of Outer Ring 590 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 861243 lbf
  • Static Radial Load 1472499 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 180 kg
  • Price （US$） US$5,460.92

Features

Performance Features of 23088 CA/C08W33 Bearing

23088 CA/C08W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 861,243 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1,000 rpm, it delivers reliable performance under demanding conditions.

23088 CA/C08W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its spherical roller design accommodates misalignment, ensuring consistent performance in varied applications.

The lubrication groove and hole design in 23088 CA/C08W33 Bearing simplifies maintenance.
This feature helps extend service life while reducing downtime for lubrication.

Application

Industrial Uses of 23088 CA/C08W33 Bearing
23088 CA/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23088 CA/C08W33 Bearing supports the main shaft, thanks to its robust construction and high load capacity. The spherical roller design compensates for misalignment, reducing wear over time.

For mining equipment, 23088 CA/C08W33 Bearing’s chrome steel rollers withstand harsh conditions, providing reliable performance in conveyors and excavators. Its lubrication groove design simplifies maintenance in dusty environments.

Where Is 23088 CA/C08W33 Bearing Used?
You’ll often find 23088 CA/C08W33 Bearing in paper mills, where it supports large rollers under constant load. The P5 radial run-out ensures precise alignment for smooth paper production.

In steel plants, 23088 CA/C08W33 Bearing handles extreme temperatures and heavy loads in rolling mills. Its metric sizing makes it compatible with European and Asian machinery standards.

Built for Heavy-Duty Use: 23088 CA/C08W33 Bearing
23088 CA/C08W33 Bearing excels in construction equipment like cranes, where its dynamic load capacity keeps operations running smoothly. The open seal design allows for easy lubrication checks.

In marine applications, 23088 CA/C08W33 Bearing’s corrosion-resistant materials ensure longevity in saltwater environments. The wide temperature range makes it suitable for both Arctic and tropical conditions.

Automotive vs Aerospace: Applications of 23088 CA/C08W33 Bearing
In automotive testing rigs, 23088 CA/C08W33 Bearing handles high-speed rotations and variable loads. Its brass cage reduces friction, extending service life.

For aerospace ground equipment, 23088 CA/C08W33 Bearing’s precision tolerances ensure reliable performance in aircraft tow tractors and loading systems. The spherical rollers adapt to uneven loads effortlessly.
