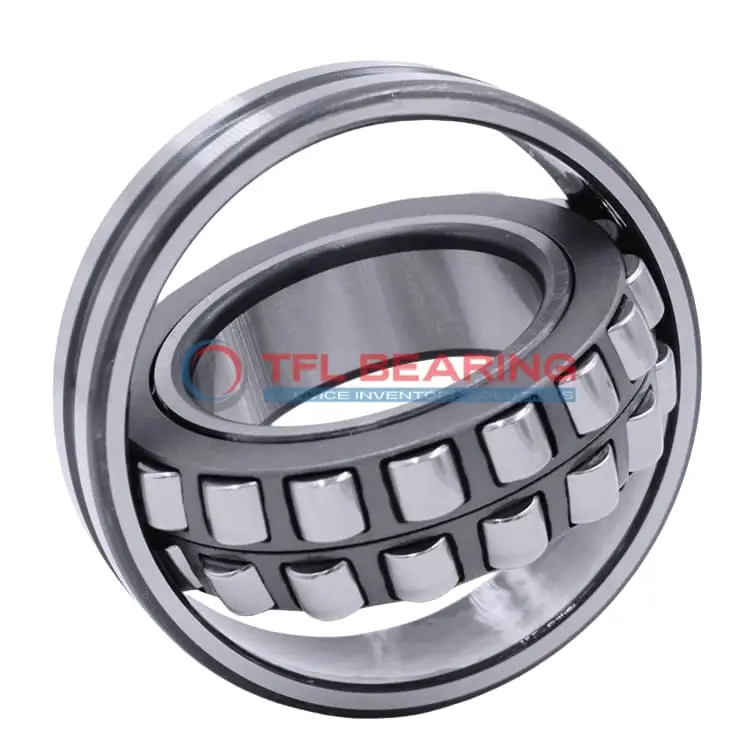

23080 CC/C08W33 Double Row Spherical Roller Bearing

23080 CC/C08W33 Double Row Spherical Roller Bearing

The 23080 CC/C08W33 is a double-row spherical roller bearing with a 400mm bore and 600mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 767273 lbf and runs smoothly at speeds up to 1100 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or industrial gearboxes where high radial loads are present.

Weighing 150kg, it’s a robust choice for demanding applications. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23080 CC/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 400 x 600 x 148 mm
  • Bore Dia 400 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 148 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 467 mm
  • Shoulder/Recess Dia Of Outer Ring 543 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 767273 lbf
  • Static Radial Load 1281411 lbf
  • Max Speed 1100 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 150 kg

Features

Performance Features of 23080 CC/C08W33 Bearing

23080 CC/C08W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 767,273 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation and compensates for misalignment.
With a maximum speed of 1,100 rpm, it maintains performance under demanding conditions.

23080 CC/C08W33 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its steel cage keeps the rollers aligned, enhancing durability and reducing maintenance needs.

The lubrication groove and hole design in 23080 CC/C08W33 Bearing ensure consistent performance.
This feature simplifies maintenance, making it a reliable choice for industrial applications.

Application

Industrial Uses of 23080 CC/C08W33 Bearing
23080 CC/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction ensures smooth operation even in misaligned conditions.

In wind turbines, 23080 CC/C08W33 Bearing supports the main shaft, offering reliability under varying wind loads. Its high dynamic radial load capacity makes it suitable for long-term use in renewable energy applications.

For mining equipment, 23080 CC/C08W33 Bearing’s robust chrome steel construction withstands harsh environments. The lubrication groove design ensures consistent performance, reducing downtime in critical operations.

What Makes 23080 CC/C08W33 Bearing a Preferred Choice?
23080 CC/C08W33 Bearing is ideal for paper mills, where its high static radial load capacity supports heavy rollers. The steel cage enhances durability, making it a cost-effective solution for continuous production.

In steel plants, 23080 CC/C08W33 Bearing excels in rolling mills, handling extreme temperatures and heavy loads. Its metric sizing ensures compatibility with a wide range of industrial equipment.

Built for Heavy-Duty Use: 23080 CC/C08W33 Bearing
23080 CC/C08W33 Bearing is a go-to for construction machinery like cranes and excavators. Its combined load capability and high-speed tolerance make it versatile for demanding tasks.

The bearing’s open design allows for easy lubrication, extending service life in applications like marine propulsion systems. This feature is particularly useful in environments where maintenance access is limited.

Automotive vs Aerospace: Applications of 23080 CC/C08W33 Bearing
In automotive testing rigs, 23080 CC/C08W33 Bearing provides stability under high loads, ensuring accurate results. Its precision engineering meets the stringent requirements of vehicle development.

For aerospace ground equipment, the bearing’s temperature range and reliability are crucial. It supports heavy loads in aircraft tow tractors and cargo loaders, ensuring smooth operations.
