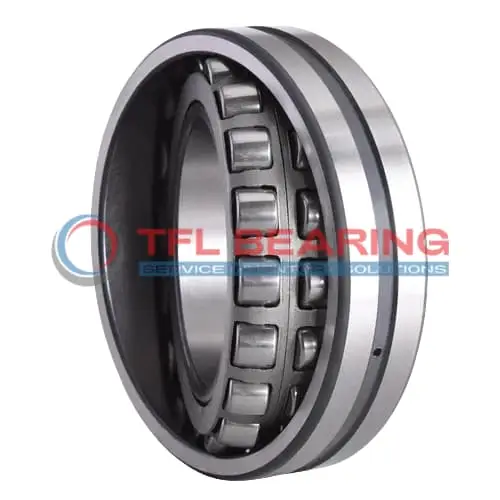

23060 CC/C2W33 Double Row Spherical Roller Bearing

23060 CC/C2W33 Double Row Spherical Roller Bearing

The 23060 CC/C2W33 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 484238 lbf and operates smoothly at speeds up to 1500 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs well in temperatures ranging from -30°C to 200°C, making it suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 71.5kg, it’s a robust choice for large machinery. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23060 CC/C2W33
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 118 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 118 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 352 mm
  • Shoulder/Recess Dia Of Outer Ring 414 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 484238 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 71.5 kg
  • Price （US$） US$1,896.27

Features

Performance Features of 23060 CC/C2W33 Bearing

23060 CC/C2W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 484238 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design accommodates misalignment, enhancing performance in challenging conditions.
With a maximum speed of 1500 rpm, it balances durability and efficiency for industrial use.

23060 CC/C3W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage maintains roller alignment, reducing wear and extending service life.

Lubrication grooves and holes ensure proper lubrication, minimising maintenance requirements.
Its C2 radial clearance provides optimal performance for precision applications.

Application

Industrial Uses of 23060 CC/C2W33 Bearing
23060 CC/C2W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged environments.

Where Is 23060 CC/C2W33 Bearing Used?
You’ll often find 23060 CC/C2W33 Bearing in mining equipment, where its high dynamic radial load capacity supports demanding applications. The chrome steel rollers and steel cage provide durability, even under extreme conditions.

Built for Heavy-Duty Use: 23060 CC/C2W33 Bearing
23060 CC/C2W33 Bearing excels in paper mill machinery, thanks to its ability to handle both radial and axial loads. The C2 radial clearance ensures optimal performance at high speeds, up to 1500 rpm.

Automotive vs Aerospace: Applications of 23060 CC/C2W33 Bearing
In automotive applications, 23060 CC/C2W33 Bearing is used in large trucks and buses for its load-bearing capacity. Meanwhile, in aerospace, its temperature range makes it suitable for auxiliary equipment.

Key Fields for 23060 CC/C2W33 Bearing
23060 CC/C2W33 Bearing is ideal for wind turbines, where its spherical rollers accommodate shaft deflections. The open design allows for easy lubrication, extending service life in remote installations.
