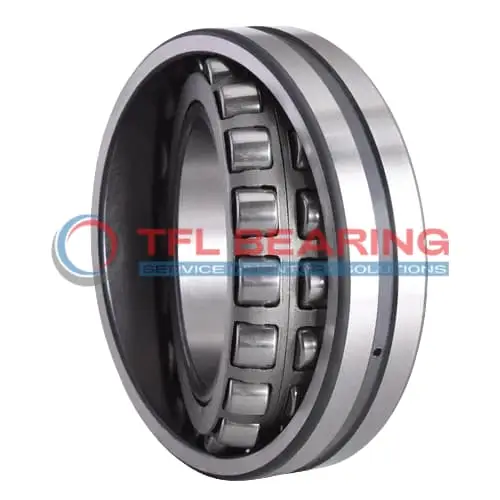

23060 CC/C08W33 Double Row Spherical Roller Bearing

23060 CC/C08W33 Double Row Spherical Roller Bearing

The 23060 CC/C08W33 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 484238 lbf and operates smoothly at speeds up to 1500 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 71.5kg, it’s built for robust performance in demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23060 CC/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 118 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 118 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 352 mm
  • Shoulder/Recess Dia Of Outer Ring 414 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 484238 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 71.5 kg

Features

Performance Features of 23060 CC/C08W33 Bearing

23060 CC/C08W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 484238 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for smooth operation even under misalignment conditions.
With a maximum speed of 1500 rpm, it balances durability and efficiency in demanding environments.

23060 CC/C08W33 Bearing operates in temperatures ranging from -30° to 200°C, making it suitable for various industrial settings.
Its steel cage ensures proper roller alignment, reducing wear and extending service life.

The lubrication groove and hole design in 23060 CC/C08W33 Bearing facilitate easy maintenance.
This feature helps maintain optimal performance while reducing downtime.

Application

Industrial Uses of 23060 CC/C08W33 Bearing
23060 CC/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The chrome steel construction ensures durability in harsh industrial environments.

In wind turbines, 23060 CC/C08W33 Bearing supports the main shaft, providing reliable performance under varying wind conditions. Its high dynamic radial load capacity makes it suitable for long-term operation with minimal maintenance.

For mining equipment, 23060 CC/C08W33 Bearing excels in conveyor systems and excavators, where its combined load capability and robust design withstand extreme conditions. The steel cage enhances stability even under heavy shock loads.

Automotive vs Aerospace: Applications of 23060 CC/C08W33 Bearing
In large vehicles like trucks and buses, 23060 CC/C08W33 Bearing is used in drivetrains to manage heavy loads and vibrations. Its metric sizing ensures compatibility with standard components.

For aerospace applications, 23060 CC/C08W33 Bearing is less common but may be found in ground support equipment, where its high-temperature tolerance and precision are beneficial. The open design allows for easy lubrication and inspection.

What Makes 23060 CC/C08W33 Bearing a Preferred Choice?
23060 CC/C08W33 Bearing is a go-to for paper mills, where its spherical rollers accommodate shaft deflections during high-speed operation. The P5 radial run-out ensures consistent performance in precision applications.

Its wide temperature range (-30° to 200 °C) makes 23060 CC/C08W33 Bearing versatile for both cold and hot environments, such as steel plants or refrigeration units. The lubrication groove design simplifies maintenance in hard-to-reach areas.
