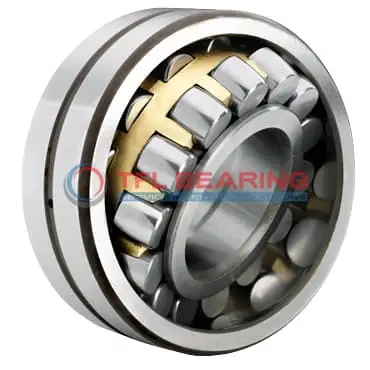

23060 CAC/C08W525 Double Row Spherical Roller Bearing

23060 CAC/C08W525 Double Row Spherical Roller Bearing

The 23060 CAC/C08W525 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, crafted from sturdy chrome steel. It supports combined loads up to 484238 lbf and operates smoothly at speeds up to 1500 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing handles temperatures from -30°C to 200°C, making it versatile for various conditions.

With a radial run-out of P5, it ensures precise performance in demanding applications. Ideal for heavy machinery, industrial gearboxes, or equipment requiring high load capacity and reliability.

Weighing 71.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, especially as it’s interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23060 CAC/C08W525
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 118 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 118 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 352 mm
  • Shoulder/Recess Dia Of Outer Ring 414 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 484238 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 71.5 kg
  • Price （US$） US$1,964.51

Features

Performance Features of 23060 CAC/C08W525 Bearing

23060 CAC/C08W525 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 484238 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 1500 rpm, it delivers both durability and efficiency.

23060 CAC/C08W525 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its spherical roller design accommodates misalignment, enhancing reliability in demanding conditions.

The lubrication groove and hole design ensure consistent grease distribution, reducing maintenance needs.
23060 CAC/C08W525 Bearing’s precision construction meets P5 radial run-out standards for smooth operation.

Application

Industrial Uses of 23060 CAC/C08W525 Bearing
23060 CAC/C08W525 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 23060 CAC/C08W525 Bearing supports the main shaft, offering reliability in variable weather conditions. Its wide temperature range makes it suitable for both cold and hot environments.

For mining equipment, 23060 CAC/C08W525 Bearing’s robust construction withstands extreme loads and vibrations. The chrome steel rollers and rings provide long service life in harsh operational settings.

Where Is 23060 CAC/C08W525 Bearing Used?
You’ll find 23060 CAC/C08W525 Bearing in paper mills, where it supports large rollers under continuous operation. Its high dynamic radial load capacity ensures minimal downtime.

The bearing also fits well in construction machinery like cranes and excavators. Its combined load handling makes it versatile for both radial and axial forces.

Built for Heavy-Duty Use: 23060 CAC/C08W525 Bearing
23060 CAC/C08W525 Bearing excels in steel production lines, handling heavy loads from rolling mills. The open seal design allows for easy lubrication, extending its lifespan.

In marine applications, this bearing is used in propeller shafts due to its resistance to misalignment. The metric sizing ensures compatibility with international standards.

Automotive vs Aerospace: Applications of 23060 CAC/C08W525 Bearing
In automotive testing rigs, 23060 CAC/C08W525 Bearing endures high-speed rotations and variable loads. Its precision helps in accurate performance measurements.

For aerospace ground equipment, the bearing’s high static radial load capacity supports heavy structures. The brass cage reduces friction, enhancing efficiency.
